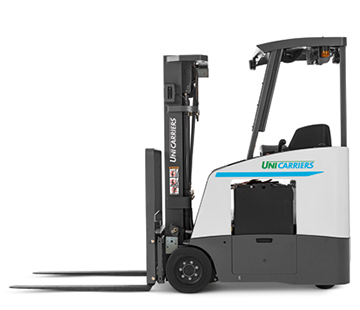

The SCX N2 Series offers reduced aisle requirements, greater maneuverability, and ease of operator ON-OFF actions when multitasking. Additionally, these stand-up counterbalance electric trucks provide excellent overall flexibility for operations requiring extensive product shuffling or frequent maneuvering in and out of trailers. Flexibility is the name of the game, and this makes the SCX N2 a “jack of all trades” machine.
Powerful, Efficient Performance
Smooth Moves
The SCX N2 can turn within its own footprint for unsurpassed maneuverability. A compact wheelbase and two individually controlled AC motors make short work of tight turns.
3 Customizable Performance Modes = Greater Productivity
Optimize performance based on the application, work environment or operator experience with three factory-set modes to easily customize your lift truck to your business. Or further customize any or all of those 3 settings to create your own precise mix of power and control.

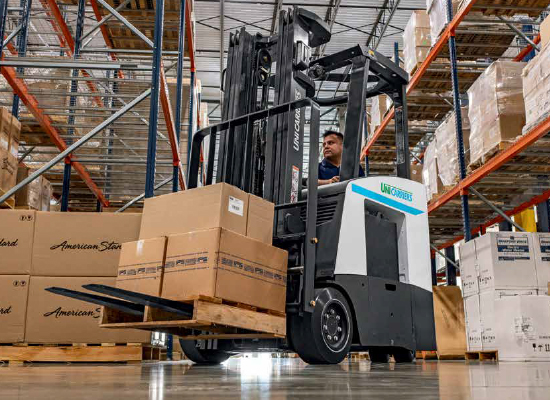

Uptime You Can Rely On
All new AC electric power steering allows operators to have more precise steering control with minimal effort, less noise, and less maintenance than hydraulic steering.
Control at Your Fingertips
Intelligent Curve Control
The SCX N2 Series control system is constantly monitoring the steering angle and speed of the truck and automatically reduces travel speeds when cornering too quickly.
Ramp Hold
If the travel control is returned to neutral while traveling on a ramp, the controller will reduce and stop movement down the slope.
Protection for Operator and Load
Operator Presence

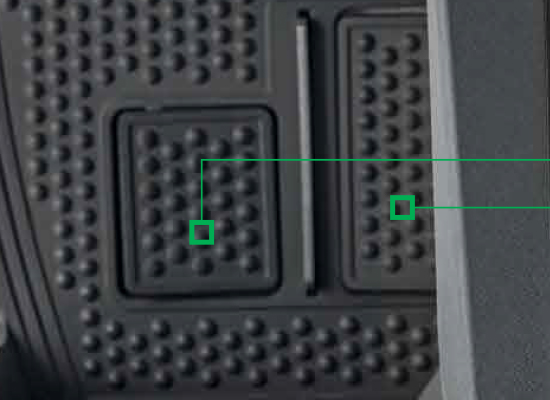

The SCX N2 floorboard has two pedals and an anti-slip ergonomic floormat:
The traction pedal (left) is required for drive functions and allows you to travel forward and reverse.
The presence pedal (right) is required for all functions – hydraulic and travel.
The floorboard keeps the operator’s feet in a safe operating position beneath the lip of the entry.
If both pedals are NOT depressed, the truck will be not travel in any direction, helping to keep both the operator and the surroundings safe.
Automatic Steer Centering
This feature returns the drive tire to the forward position when the truck is powered on or off, helping to prevent the unit from jogging to the left or right upon startup. This can help reduce HSE risks if someone is standing next to the truck.
Comfort That Sustains Productivity
Electronically adjustable armrest and backrest
The padded armrest and 60" backrest are electronically adjustable by up to 4" to accommodate operators of different sizes.
Integrated Control Handle
The SCX control handle is integrated into the armrest and adjusts simultaneously with the armrest and backrest for superior ergonomic positioning.
Plush Surroundings
The operator compartment features a padded and adjustable armrest and backrest, in addition to knee and waist padding for 270° cushioning to prevent discomfort and fatigue.
A Smooth Ride
Unlike most competitive forklifts, the platform of the SCX N2 is spring-loaded and dampened, to provide a suspended compartment that is easily customizable to each operator’s weight and preference.
Easy Entry
The SCX N2 has a low, 9.4" step height along with a wide compartment entry – an ideal design for operators who are constantly getting on and off the truck.
| Model | Capacity | Height | Power Type | Length | Width | Maximum Available Fork Height | Weight |
|---|---|---|---|---|---|---|---|
| SCX30N2 | 3,000 | 188 | 36 V | 63 | 41 | 88 | 8,424 |
| SCX35N2 | 3,500 | 188 | 36 V | 65 | 41 | 88 | 8,424 |
| SCX40N2 | 4,000 | 188 | 36 V | 70 | 41 | 88 | 9,244 |
