NR15N-ND18LN Pantograph Reach Truck
Back to
![]()
Back to
Productivity

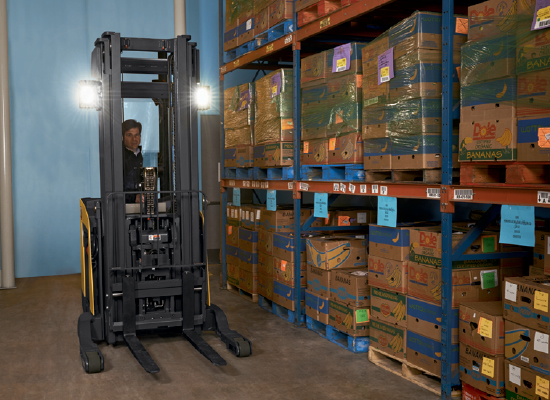

Class-leading Capacity Retention – Utilize this feature even at high lift heights – up to 13 m – and excellent visibility through the mast, fork carriage and overhead guard, ensuring top performance in any warehouse application.
Responsive Drive System (RDS) – Features advanced mast handling – for fast lifting/lowering, smooth start/stop of reach movements and accurate tilt/side shift control. In addition, mast and reach carriage technology is incorporated for high stability and minimal sway along with a choice of user-set performance modes or engineer-customized settings for various application needs.
Latest Pre-set Height Selector – Easy to use, allowing faster, safer stacking.
Responsive Drive System (RDS) – Features advanced mast handling – for fast lifting/lowering, smooth start/stop of reach movements and accurate tilt/side shift control. In addition, mast and reach carriage technology is incorporated for high stability and minimal sway along with a choice of user-set performance modes or engineer-customized settings for various application needs.
Latest Pre-set Height Selector – Easy to use, allowing faster, safer stacking.
Awareness

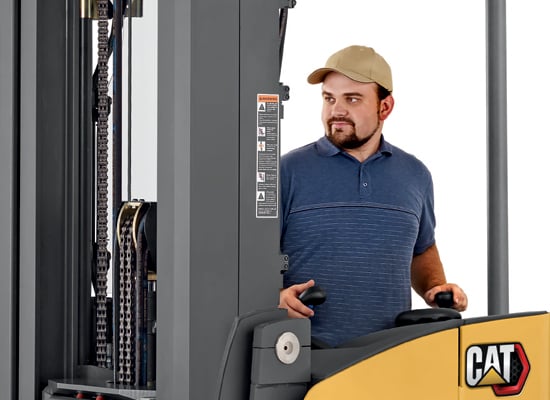

Leading Class-Rated Features – Rigid chassis, inbuilt operator protection features and programmable mast damping together with standard Passive Sway Control improves stability without reducing performance.
Ergonomics

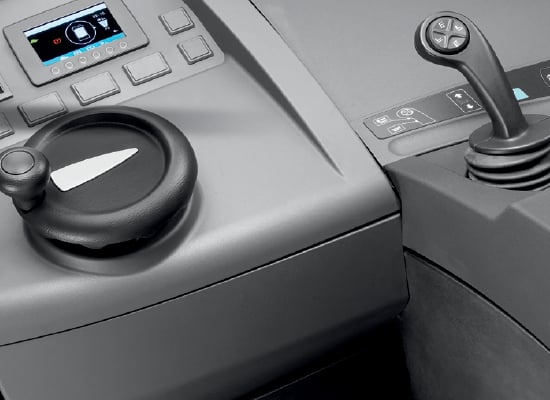

Redesigned Adjustable Armrest – Combines anatomical support with free movement and perfect hand positioning, featuring spring-force-optimized fingertip hydraulic controls or – as an option – intuitive joystick control.
Intermediate Step and Ergonomic Grab Handles – Allow easy and smooth on-off access to a wide, unobstructed, comfortable, protective cabin with low seat position.
Intermediate Step and Ergonomic Grab Handles – Allow easy and smooth on-off access to a wide, unobstructed, comfortable, protective cabin with low seat position.
Total cost of ownership

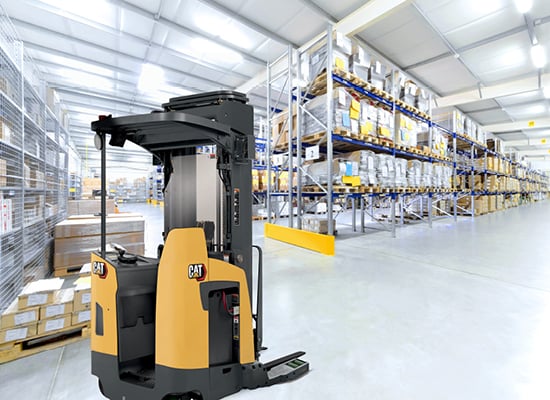

Easy Access – Minimize downtime with easier access to components, including pumps and controller, combined with maintenance-free AC power and long service interval (600 hours).
Full-color Display Panel – Displays clear information in operator’s own language and simple-to-learn functionality, advises on truck status, avoids misuse and protects your investment.
Full-color Display Panel – Displays clear information in operator’s own language and simple-to-learn functionality, advises on truck status, avoids misuse and protects your investment.
More efficiency, less maintenance
The Lithium-ion battery package provides the highest performance battery solution.
- High performance batteries that are synchronized with the lift truck and charger for optimal energy efficiency
- No maintenance requirements and a longer service life mean each truck offers more daily use, increased throughput and reliable 24/7 output
- No more battery change outs, watering and degassing areas
- Maximize truck productivity through opportunity charging that can be interrupted anytime
- 5-year battery warranty included
| Model | Capacity | Height | Voltage | Length | Width | Maximum Available Fork Height | Weight |
|---|---|---|---|---|---|---|---|
| NR15N | 3,000 | 6,147 | 36 V | 74.1 | 41.5 | 302 | 3,100 |
| NR18N | 3,500 | 302 | 36 V | 74.1 | 41.5 | 302 | 3,100 |
| NR20N | 4,000 | 366 | 36 V | 76.1 | 41.5 | 366 | 3,200 |
| NR23N | 4,500 | 450 | 36 V | 76.1 | 55 | 450 | 3,200 |
| ND18N | 3,500 | 450 | 36 V | 78.1 | 62.3 | 450 | 3,500 |
| NR23LN | 4,500 | 450 | 36 V | 2,492 | 1,220 | 2,720 | 4,500 |
| ND18LN | 3,500 | 450 | 36 V | 2,677 | 1,220 | 2,720 | 3,500 |
