2EPC7000-2EP11000 Electric Pneumatic Tire Lift Trucks
AC Electrical System – Alternating current design optimizes productivity and energy efficiency, allowing two shifts with one battery charge in many applications.
Display Panel – Easy-to-read display includes information on service icons, directional indicators and performance modes.
Selective Performance Modes – Five-level pre-programmed performance mode selector lets you adapt to various applications.
Sealed Components – Electric motors protected to IP54, electro-magnetic brakes and short cables help protect components from dust and moisture, helping to minimize forklift downtime and extend service intervals.
Performance Customization – Exclusive and comprehensive servicing software allows the factory-trained technician the ability to perfectly match performance parameters to your application.
Curve Control – Curve Control automatically reduces forklift speed while turning corners, helping to ensure control over loads.
Visibility – Optimum visibility in all directions due to mast, overhead guard and counterweight design.
Power Steering – Hydraulic power steering provides significantly lower steering effort. Optional electric power steering improves lift truck power efficiency and performance levels.
Fingertip Controls – Standard fingertip controls offer precise control – a travel directional switch and horn are conveniently integrated into the fingertip module.

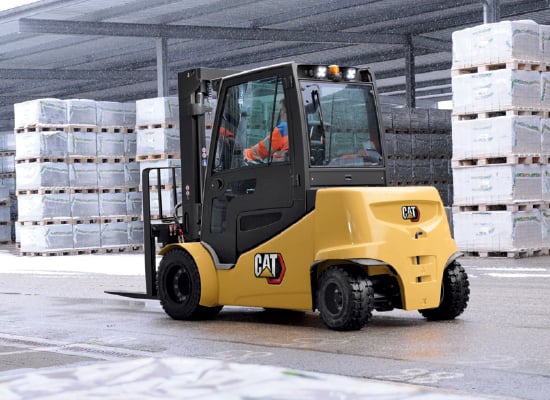

Full Suspension Seat – A three-way adjustable full-suspension seat and fully-floating cab design help reduce shock and vibration.
Narrow Steering Column – The large forklift design allows for ample leg room and can be adjusted in two planes – height and proximity.
| Model | Capacity | Height | Voltage | Length | Width | Maximum Available Fork Height | Weight |
|---|---|---|---|---|---|---|---|
| 2EPC7000 | 7,000 | 255 | 80 V | 105.4 | 52.8 | 93.1 | 12,853 |
| 2EPC8000 | 4,000 | 7,188 | 80 V | 2,668 | 1,340 | 2,365 | 6,633 |
| 2EP8000 | 4,000 | 7,188 | 80 V | 2,812 | 1,340 | 2,365 | 6,592 |
| 2EP8500 | 4,000 | 7,188 | 80 V | 2,922 | 1,450 | 2,350 | 7,067 |
| 2EPC9000 | 4,500 | 7,188 | 80 V | 2,668 | 1,450 | 2,350 | 7,093 |
| 2EP9000 | 4,500 | 7,188 | 80 V | 2,812 | 1,450 | 2,350 | 7,052 |
| 2EP10000 | 5,000 | 7,188 | 80 V | 2,812 | 1,450 | 2,350 | 7,440 |
| 2EP11000 | 5,000 | 6,680 | 80 V | 2,952 | 1,450 | 2,350 | 7,927 |
