O Series OLP-OLH-OEP-OEH Class III Center Control Riders

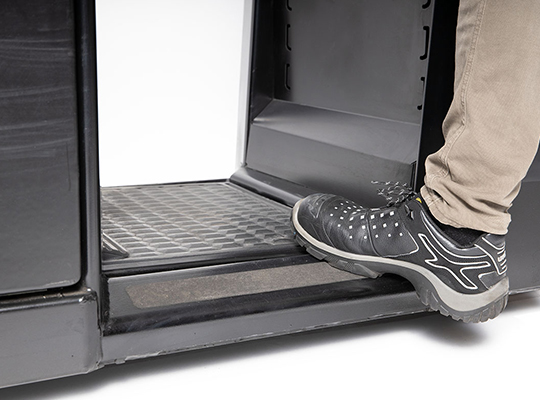

The driver is the most important part of the truck. Features like the truck’s low step height and 3D Step-In design make the operator’s work easier and strain-free during picking. In addition, the O-series offers extra space and practical features:
- A low and narrow backrest makes it easier for drivers to walk quickly through the truck without hitting their elbows.
- The short chassis design makes the truck highly maneuverable.
- The fork tips are designed for easy entry, and longer forks are reinforced.

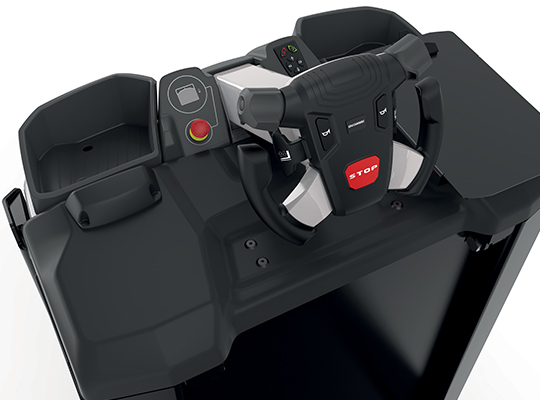

The steering wheel allows control of all functions from a single location. It’s designed to reduce movement, providing the driver with maximum recuperation between picking locations. The steering is 100 degrees each direction, which is a great help in tight spaces. If you make a full turn on the spot, the truck will reverse away from obstacles or other trucks queueing in front.

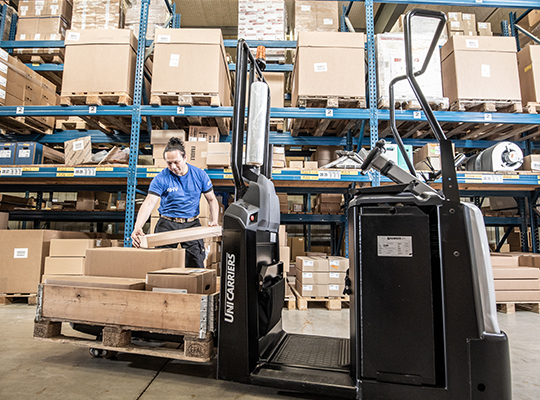

UniCarriers center control riders are modular. This makes it possible to tailor every truck to your wishes and keep down service costs and TCO thanks to a shared component strategy that ensures maximum uptime. Design your unit for floor and first level picking to meet your picking needs.
- Support bars and foldable climbing steps
- Picking tray and Ergolift
- Robust chassis with reinforced bumper
- Multifunctional display
Instant Launch technology allows the driver to accelerate immediately while boarding the truck, without having to get into place to operate the presence switch. The truck reacts instantly and set-off time is significantly lower when compared to conventional order picking trucks.
The Extra Boost feature can give the driver an extra dose of acceleration if they need it. By pressing both acceleration keys simultaneously, the acceleration is boosted, and the truck reaches its top speed within seconds. This feature is perfect if longer distances must be covered.
| Model | Capacity | Height | Voltage | Length | Width | Maximum Available Fork Height | Weight |
|---|---|---|---|---|---|---|---|
| OEH120 | 1,200 | 765 / 1,115 | 24 V | 1,321 | 800 | 1,394 / 2,244 | 2,556 |
| OEP120 | 1,200 | 765 / 1,115 | 24 V | 1,321 | 800 | 1,275 / 1,625 | 2,420 |
| OLH200 | 2,000 | 220 | 24 V | 1,271 | 800 | 1,394 / 2,244 | 1,215 |
| OLH250 | 2,500 | 220 | 24 V | 1,271 | 800 | 1,394 / 2,244 | 1,215 |
| OLP200 | 2,000 | 220 | 24 V | 1,271 | 800 | 1,173 | 1,079 |
| OLP250 | 2,500 | 220 | 24 V | 1,271 | 800 | 1,173 | 1,079 |
