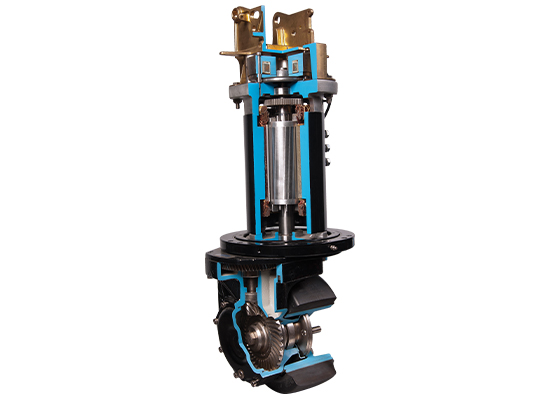

Our ac motor does more for less Greater torque and faster speeds are only the beginning of what our proven 5.2 HP brushless AC drive motor delivers. This 24 Volt system features enhanced thermal capabilities and delivers consistent power during normal battery discharge, while using less energy per cycle. The result?  Consistent performance shift after shift, with longer run times between charging. Since easier maintenance is a key to greater reliability, our high-performance AC Motor is mounted vertically on the pallet jack rider for better heat dissipation and ease of service.
Our ac motor does more for less

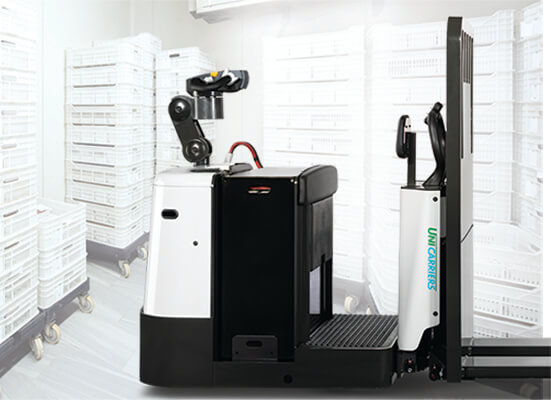

Wet, dry, hot or cold our sealed systems can do it all With the SPX, one center rider pallet jack can do it all — moving from coolers and freezers to dry ambient environments where condensation can occur.  As a safeguard, all of our center rider pallet trucks are equipped with sealed switches, an epoxy coated control board, IP65 rated sealed controller, and sealed steer race — all housed within our rugged frame that’s protected by a durable powder coat paint finish. Add in our other features like AC motor control, thermal cut back and onboard self-diagnostics, and you have one very versatile pallet jack rider.
Wet, dry, hot or cold our sealed systems can do it all

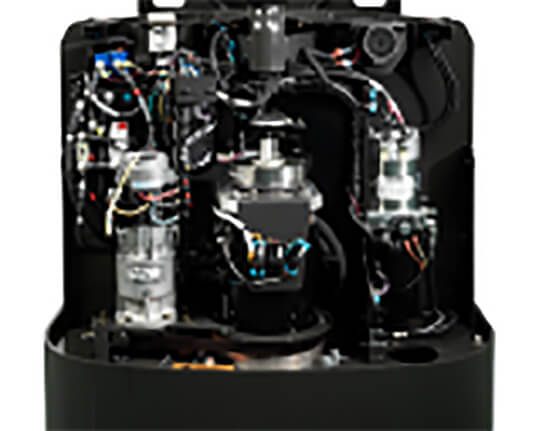

Protection of key components Unique steer race and enclosed frame design help keep major components protected — including drive motor, controller and hydraulic system — resulting in less maintenance and longer life.
Protection of key components

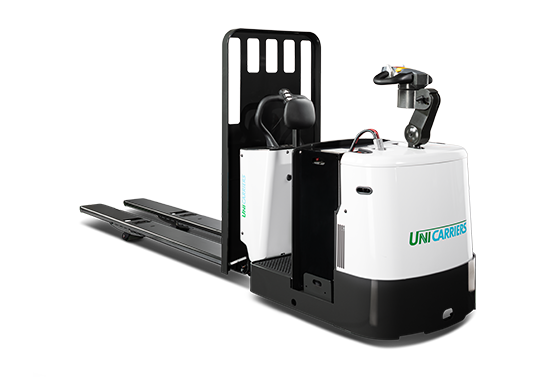

Up your uptime Your operation can’t shut down or slow down because of the equipment you use. That’s why our center rider pallet trucks are designed to deliver maximum uptime. From the tips of the forks to the switches on the handle, our pallet jacks are engineered to do more, withstand more, and deliver more, every day. Unlike competitive equipment, our standard pallet jack riders can operate in all environments, moving swiftly and reliably from coolers and freezers down to -20 degrees F (-28.9 degrees C) to dry ambient environments. The temperatures in your operation may vary, but the quality and reliability of our pallet trucks never do.
Up your uptime
Model Capacity Height Voltage Length Width Maximum Available Fork Height Weight
SPX60B 6,000 9.25 24 V 35.1 56.9
SPX80B 8,000 9.25 24 V 35.1 56.9
SPXE60 6,000 9.25 24 V 35.1 56.9
SPXE80 8,000 9.25 24 V 35.1 56.9
SPX Series SPX60B-SPX80B Product Spec Sheet - English

SPX Series SPX60B-SPX80B Class III Center Control Rider
