ETR 214-316d Pantograph Reach Trucks Brochure
        Back to






                        ![]()





























































































                                ![What Customers Are Saying]()






















        Back to

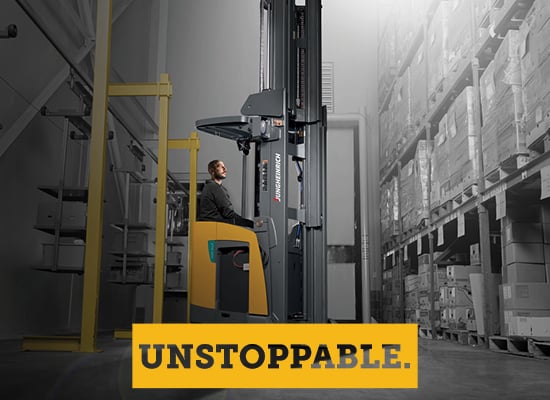

                            Productivity




Peak Performance
- Quick acceleration, fast travel speeds, and one of the fastest lifting speeds (165 feet per minute) leads to faster placement and pick-up of loads for greater throughput and efficiency.
- 3 customizable performance modes for virtually any application and operator experience level, which equates to greater productivity.
- Lift Height Indicator with Shelf Pre-selector –significantly increases productivity.

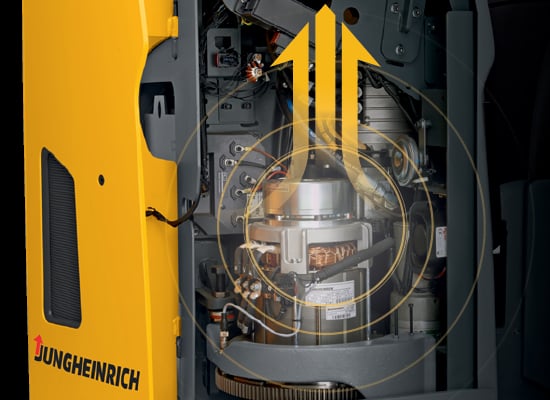

                            Energy efficiency


Run 2 Shifts /1 Charge Guarantee
- We guarantee your lift truck will run for 16 hours with no interim charging, no battery changing and no additional charging equipment required - saving valuable operator time and reducing your overall costs.
Advanced Regenerative Braking
- This technology recovers energy when reversing or when the control handle is returned to a neutral position, leading to fewer battery changes and ultimately helping to increase throughput and productivity.
AC Technology –6th Generation
- Next Generation AC technology provides for less energy consumption, higher torques, faster lift and travel speeds and longer run times.
- AC Electric Power Steering

    Steer with control – Positioning the reach truck in an aisle is simplified with the ETR’s electronic power steering. This drive-by-wire system is extremely smooth and quiet and requires minimal effort to operate.

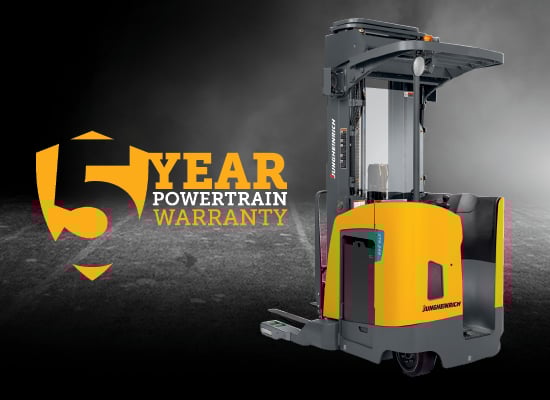

                            Industry exclusive support


5-Year Powertrain Warranty
- Industry’s only standard 5-year / 10,000 powertrain warranty – including parts and labor on all powertrain components.
Low Maintenance
- 1,000 hours service interval means more uptime with less time, effort and money spent on maintenance.


                            Operator assistance


curveCONTROL
- Automatically reduces travel speed when cornering and helps keep the truck and load stable and secure.
Operator Presence
- Two-pedal Operator Presence system activates alerts or stops specific functions on the truck.
Capacity Retention
- Superior Capacity retention at height – base legs integrated into the chassis and not the mast as on many competitor trucks


                            Ergonomics


Comfort
- Operator friendly design with comfortable cushions position at operator contact points - knee, back, hip and armrest padding.
Efficiency
- Exclusive Jungheinrich-designed intuitive multifunction control handle provides outstanding job accuracy and efficiency.
Precision
- All electric power steering allows for precise and effortless control.

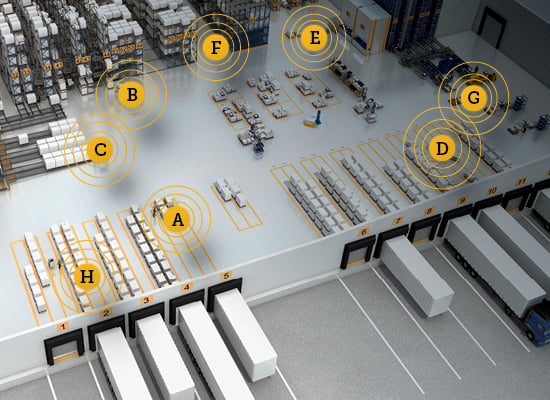

                            Customizations for unique applications


- Lift Link® - the all-in-one telematics solution for real-time monitoring of your material handling trucks. Track usage, prevent unauthorized access, detect aggressive operator behavior, and generate customizable reports. This powerful tool will transform how you manage your fleet.
- Camera with color monitor
- Lighting – Various spot lights, strobe lights, and flashing lights
- Cold storage conditioning for freezer applications


                            Contact our specialists today

                        Request your free 7-Day Demo Challenge* and see the impact to your business – unstoppable productivity and even lower cost of ownership.


                            What Customers Are Saying


                        | Model | Capacity | Height | Voltage | Length | Width | Maximum Available Fork Height | Weight |
|---|---|---|---|---|---|---|---|
| ETR 214 | 3,000 | 242 | 36 V | 52.0 | 41.5 | 95.0 | 6,850 |
| ETR 216 | 3,500 | 242 | 36 V | 52.0 | 41.5 | 95.0 | 6,850 |
| ETR 318 | 4,000 | 242 | 36 V | 54.0 | 41.5 | 92.5 | 7,050 |
| ETR 320 | 4,500 | 242 | 36 V | 55.0 | 41.5 | 92.5 | 7,050 |
| ETR 316d | 3,500 | 242 | 36 V | 54.0 | 41.5 | 92.5 | 7,400 |
| ETR 420 | 3,500 | 242 | 36 V | 56.0 | 48.0 | 92.5 | 7,050 |
| ETR 416d | 3,500 | 242 | 36 V | 63.3 | 48.0 | 92.5 | 7,400 |
