Product selection image of Mitsubishi walkie end rider


Adaptability is key with the PWR30/PWR40 end rider pallet truck series, making it the prime solution for a wide variety of applications where you need to move more pallets in less time.

Versatility is key with the PWR30/PWR40, making it the prime solution for a wide variety of applications, including low-level order picking, long distance transporting and loading / unloading trailers. For ground-level jobs, its efficiency and travel speed of up to 9.3 mph are hard to match. The 6,000 lb. and 8,000 lb. walkie end-rider can be equipped with ergonomic features, such as a suspended operator platform – helping to take some of the stress out of long runs.


Industry's Fastest End Rider Pallet Truck – Up to 9.3 mph.

Increased Power, Acceleration – Three-phase AC motor and high-output AC controller deliver greater power and quick acceleration.

Superior Performance And Control – Especially on ramps and inclines.

Extended Run Times – Means less downtime for charging and greater productivity.

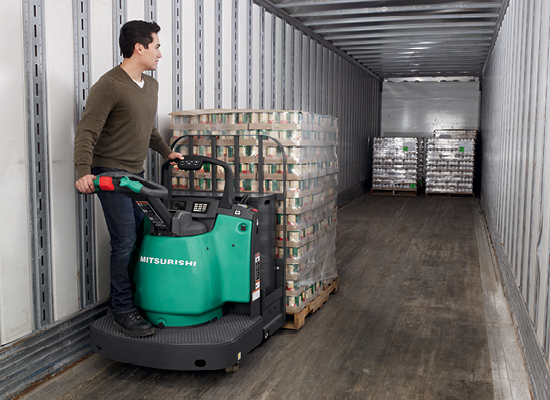

Man loading boxes on PWR30


"Smart" Auto Reverse Button – Only operates when the pallet truck is moving chassis first toward the end rider.

Optional Stability Casters – Help protect fragile loads from tipping during tight turns.

ProPick Buttons For Order Picking – Help protect product and racking by only advancing the rider pallet truck when the tiller is positioned in the straight forward position.

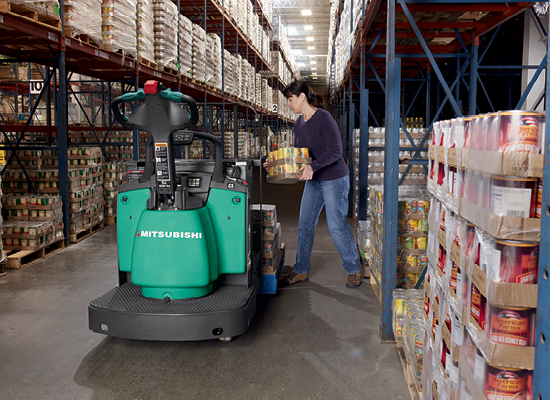

Operator driving Mitsubishi PWR30

Energy Efficiency

Longer Run Times – Regenerative braking is activated when the forklift decelerates, changes directions or when the service brakes are applied and helps return energy to the battery, extending run times and service brake life.

Highly-Efficient AC Motor – Consumes less energy, leading to extended battery life and increased run times.

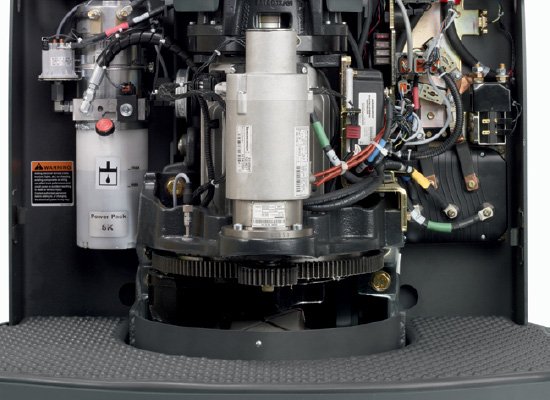

Mitsubishi PWR30 energy efficient engine


Ergonomic Platform – The standing platform is the largest in the industry and also has the thickest padding – for all-day comfort.

Simple To Drive – Comfortable, butterfly twist grip throttle promotes easy operation, even while wearing gloves.

Easy Entry/Exit
– Control buttons on both sides allow easy access to the end riderfrom either side of the platform.

Exclusive, Optional Suspended Platform
– Offers the highest degree of comfort over uneven floors and docks.

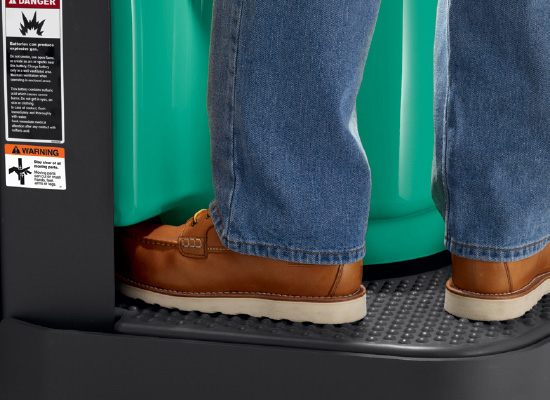

Mitsubishi PWR30 standing platform

Total Cost Of Ownership

Less Wear – AC motors have no wearable components, like carbon brushes or contactors, to replace over time. With the thickest forks in the industry, the ECR is designed to withstand the toughest applications over time.

Added Protection – Sealed electrical components mean that dust and moisture cannot impact the rider pallet truck’s performance.

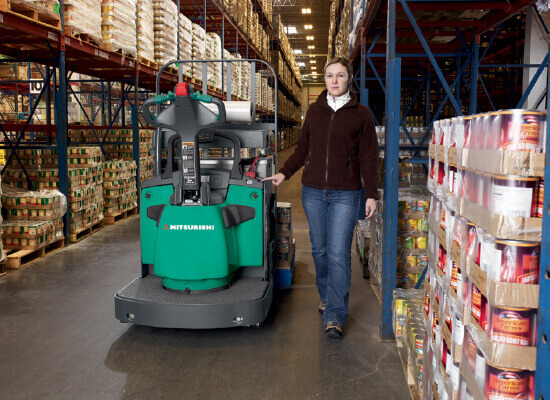

Operator walking next to PWR30 end rider

Lithium-Ion Battery Solutions

Lower Lifetime Cost
Lithium-ion batteries feature a lower cost of ownership than lead-acid batteries by eliminating excessive maintenance costs

Increase Productivity
Lithium-ion batteries can be charged to full capacity in a fraction of the time it takes to charge a lead-acid battery. Opportunity charging that can be interrupted at any time, prevents downtimes and ensures 24/7 truck usage.

Increase efficiency
The battery, vehicle and charger are all synchronized which allows for fast and efficient energy usage and charging capability.

Lithium-Ion Battery Solution

Model Basic Capacity (lbls) Max Fork Height Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in) Gross Weight (lbls)
PWR30 6,000 8.7 24 42.3 35.8 58 2,730
PWR40 8,000 8.7 24 42.5 35.8 58 3,030

Product Brochure - English

PWR30/PWR40 Walkie End Riders

Product Brochure - Spanish

PWR30/PWR40 Walkie End Riders
