An Empty Jungheinrich EZS 570

15,400, 17,600 & 19,800 lb. Capacity Electric Tow Tractor

The EZS 570NA/580NA/590NA electric tow tractors have fully suspended front and rear axles for maximum ride comfort.

The EZS 570NA/580NA/590NA tow tractors are versatile, economic forklifts ideal for towing loads up to 19,800 lbs. The ability to connect several trailers together helps to provide flexibility and increased efficiency in most material handling operations.


Solid pneumatic tires allow this truck to work efficiently outdoors. Three cab-options are available for prolonged use in harsh environments.

Fast travel speeds and powerful ramp performance lead to faster cycles.

The Jungheinrich® 3-phase AC motor and high-output AC controller deliver powerful torque and quick acceleration.

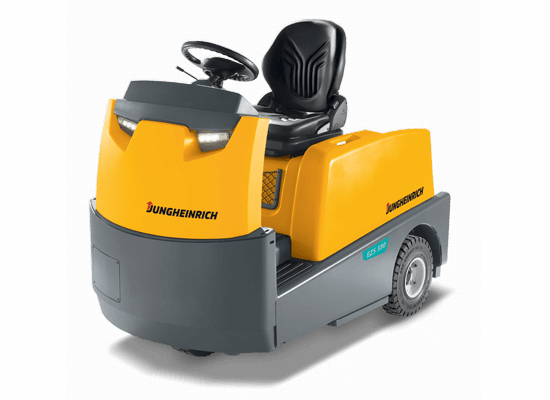

EZS570 tow tractor


Jungheinrich Curve Control automatically reduces speed while turning corners, helping to ensure control over loads.

The electronic parking brake automatically engages on ramps and inclines, reducing the chance for rollback.

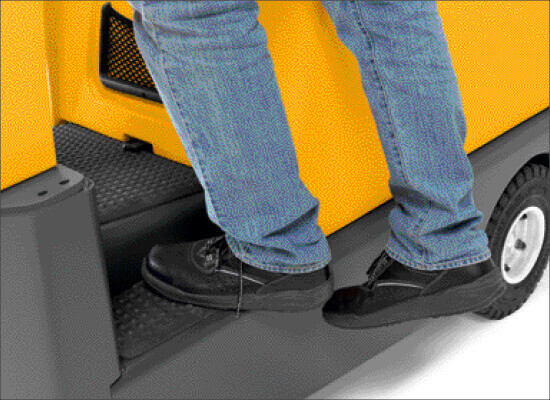

Jungheinrich EZS570 Safety Step

Energy Efficiency

Highly-efficient AC motor consumes less energy, leading to extended battery life and increased run times.

Advanced regenerative braking recovers energy while coasting, plugging and braking – feeding lost energy back into the battery.

The AC drive motor and AC controller were designed in tandem by Jungheinrich to maximize performance and energy efficiency.

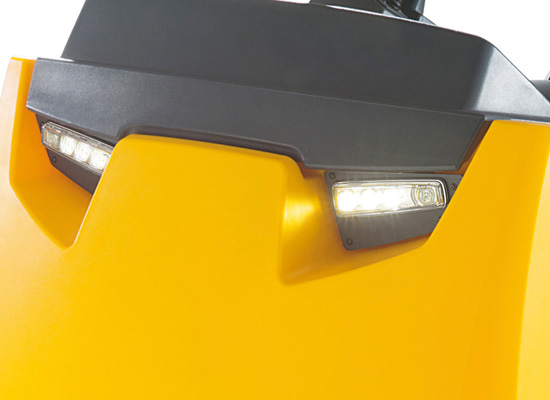

Jungheinrich EZS570 lights


An automotive-style steering wheel and acceleration/braking foot pedals make operation very intuitive.

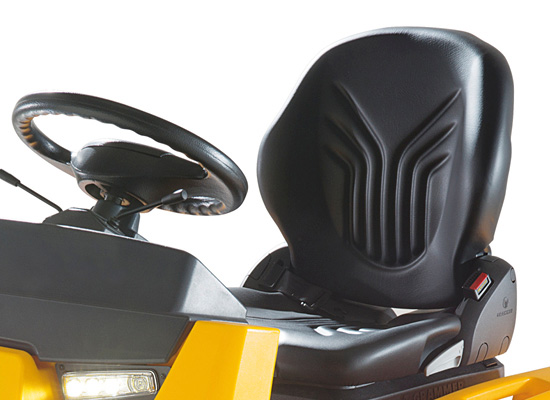

The large, full-suspension seat has three adjustments – fore/aft, height and backrest angle – for maximum comfort.

Three optional operator cab packages keep operators comfortable while working outdoors in extreme weather conditions.

The full-suspension seat, spring-loaded suspension and large, solid pneumatic tires absorb bumps and vibrations caused by uneven floors, pot holes and outdoor surfaces.

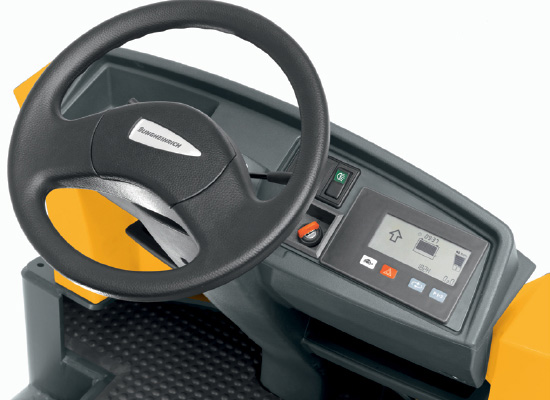

Jungheinrich EZS570 ergonomic controls

Total Cost Of Ownership

This electric tow tractor's AC motors have no wearable components, like carbon brushes or contactors, to replace over time.

Sealed electrical components mean that dust and moisture cannot impact the truck’s performance.

A thick, steel chassis and large front bumper provide superior protection from possible impact damage.

EZS570 electric tow tractor

Contact Our Specialists Today

Let us help you find the right solution to optimize your warehouse productivity.

Request More Information

ezs350 tow tractor pulling materials

Model Basic Capacity (lbls) Max Fork Height Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in) Gross Weight (lbls)
EZS 570NA 15,400 N/A 48 71.4 39.2 58.3 2,778
EZS 580NA 17,600 N/A 48 71.4 39.2 58.3 2,847
EZS 590NA 19,800 N/A 48 71.4 39.2 58.3 3,045

Product Spec Sheet - English

EZS 570/580/590 Tow Tractor

EZS 570/580/590 Tow Tractor
