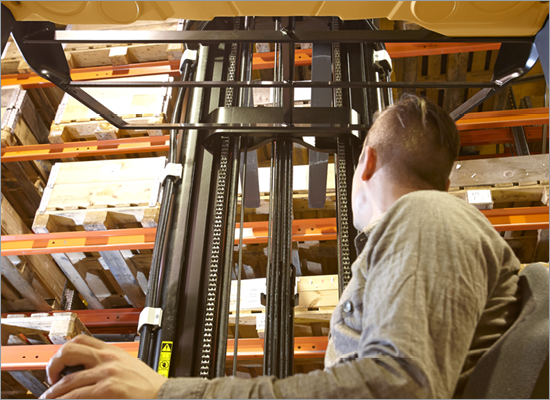

Productivity

Excellent Capacity Retention and Visibility - The poweRamic® mast and fork carriage work together to provide excellent capacity retention and clear visibility for the operator, optimizing performance in virtually any warehouse application.

Responsive Drive System (RDS) - The RDS senses operator control movements and adjusts truck performance accordingly for excellent driving productivity and greater throughput.

Shelf Height Pre-Selector - Significantly increases productivity as this eliminates the need for operators to try to align forks into pallets, especially when handling pallets at higher heights.


Productivity
Lower Cost Of Ownership Increased Uptime - Easy access to all components of the moving mast reach truck, including pumps and controller, combines with maintenance-free AC power and long service interval (600 hours) to minimize downtime.

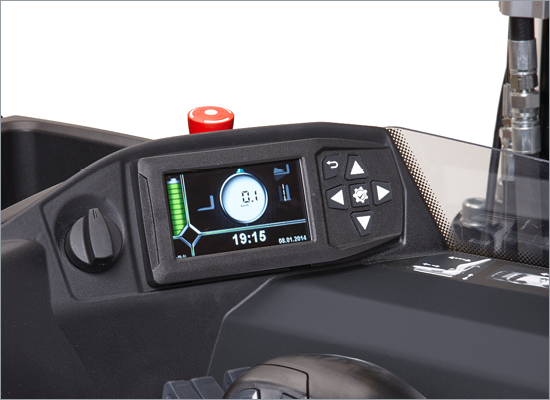

Full Control Display Panel - Helps to provide clear and concise information to the operator at just a glance and advises on truck status to further protect your investment.

Lower Cost Of Ownership

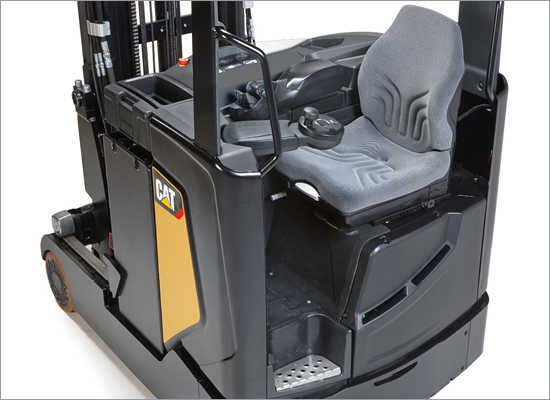

Ergonomics

Adjustable Armrest - Combines anatomical support with free movement and excellent hand positioning. Features fingertip hydraulic controls for a smooth and comfortable operation.

Intermediate Step and Ergonomic Grab Handles - Allow easy and smooth on-off access to a wide, unobstructed and comfortable operator compartment with low seat position.

Seats - Choose from different types of seats with different features and options such as adjustability, seat belts, fold-back left armrest and heated systems for refrigerated applications, all providing excellent comfort to the operator.


Ergonomics
Model Capacity Height Power Type Length Width Maximum Available Fork Height Weight
NR14N2HS 1,400 9500 1408 1270 3952 4,297
NR14N2L 1,400 7500 1408 1270 3110 3,421
NR14N3C 1,600 7500 1398 1100 3110 3,509
NR16N2HC 1,600 9000 1408 1100 3785 4,039
NR16N2HS 1,600 9000 1408 1270 3785 4,297
NR16N2L 1,600 7500 1408 1270 3110 3,421
NR16N2S 1,600 7500 1398 1270 3110 3,591
NR16N3 1,600 7500 1398 1270 3110 3,845
NR16N3H 1,600 11500 1408 1270 4618 4,571
NR20N3 1,400 7500 1398 1270 3110 3,570
NR20N3H 2,000 11500 1480 1270 4618 4,570
NR20N3HX 2,000 13000 1490 1440 5118 5,065
NR25N3H 2,500 11500 1490 1440 4618 4,656
