3,000 - 4,000 lb. Capacity Electric Four-Wheel Pneumatic Tire Lift Trucks

The EFG-316k-320 four-wheel forklift series provides high performance and energy efficiency utilizing 4th generation AC technology.

These 3,000-4,000 lb. capacity lift trucks are equipped with the newest generation of AC technology and feature efficient electric power steering. Industry-leading drive and lift performance levels and the ability to run up to two shifts on a single battery charge in most applications further reduce maintenance requirements and provide a lower total cost of ownership.

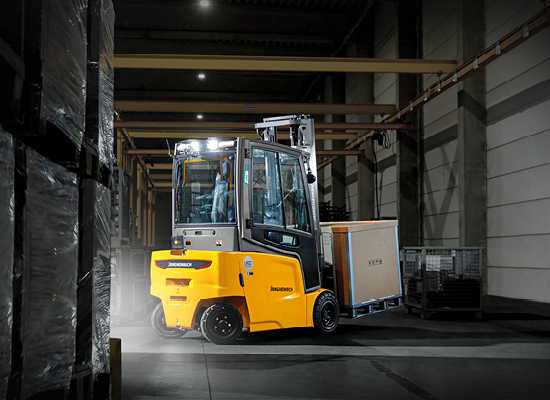

Productivity

This forklift is equipped with three performance settings, allowing it to be adapted to match operator preferences.

Experience increased productivity due to the forklift's highly informative, full color interactive display.

JH4-550x400prod

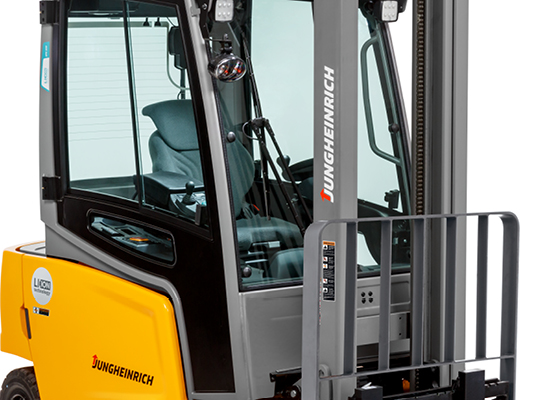

Awareness

Curve Control on these four-wheel forklift trucks automatically reduces speed while turning corners, helping to ensure control over loads.

Multiple warning and light options increase awareness and visibility in the warehouse.

Orange seat belt helps increase awareness and easy visual verification.

Truck performance software can be adjusted to meet your specific drive and hydraulic performance needs or limits.

JH4-550x400awar

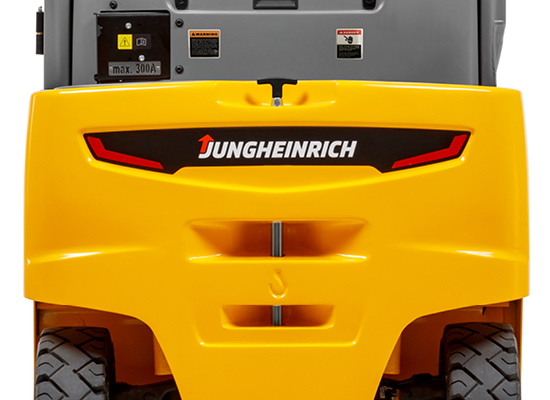

Energy Efficiency

The energy-efficient design allows the forklift to operate up to two shifts on one battery charge in most applications. This results in increased productivity when operators can work longer without stopping to recharge throughout the work day.

Features regenerative braking, designed to recover lost energy during plugging, braking and coasting. The energy is channeled back into the lift truck's battery, extending operating time and reducing charging time.

JH4-550x400enef

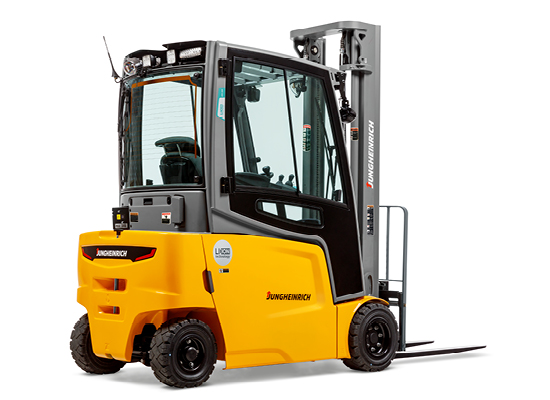

Ergonomics

Electronic hydraulic controls offer the highest level of operational ease.

SOLO- or MULTI-PILOT hydraulic controls are available to match operational preferences of operators to maximize their productivity.

The full-suspension seat helps to cushion the operator from vibrations and bumps when traveling over uneven surfaces.

Electric power steering (optional on some models) allows the operator to maneuver the truck with very little effort.

JH4-550x400ergo

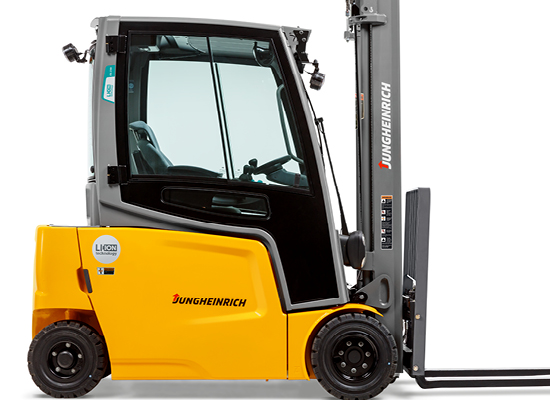

Total Cost Of Ownership

Major electrical components are sealed such as connectors, controllers and motors, decreasing the chance of external dust and debris from entering critical forklift areas.

Industry-leading service tool allows Jungheinrich technicians to quickly access and check major truck functions for faster service.

JH4-550x400tcoo

Exclusive 5-Year Powertrain Warranty

Expect more from Jungheinrich, the experts in warehouse products, like a 5-year / 10,000 hour powertrain warranty that outperforms others. Available on all Jungheinrich Class I and II products sold across the United States, Canada and Mexico, the coverage includes parts and labor on all forklift components. Rest easier knowing that we’re here to help keep your fleet running – shift after shift – when you need it most.

ezs350 tow tractor pulling materials

Contact Our Specialists Today

Let us help you find the right solution to optimize your warehouse productivity.

Request More Information

ezs350 tow tractor pulling materials

Model Basic Capacity (lbls) Max Fork Height Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in) Gross Weight (lbls)
EFG 316k 3,100 255 36/48 78.3 41.7 80.4 6,601
EFG 316 3,100 255 36/48 82.6 41.7 80.4 6,537
EFG 318k 3,490 255 36/48 78.3 44.1 80.4 6,964
EFG 318 3,490 255 36/48 82.6 44.1 80.4 6,900
EFG 320 3,880 255 36/48 82.6 44.1 80.4 7,253

Product Spec Sheet - English

EFG 213-220 / EFG 316k-320 3-Wheel/4-Wheel Electric Pneumatic Tire Lift Trucks

Product Brochure - English

EFG 213-220 / EFG 316k-320 3-Wheel/4-Wheel Electric Pneumatic Tire Lift Trucks Brochure
