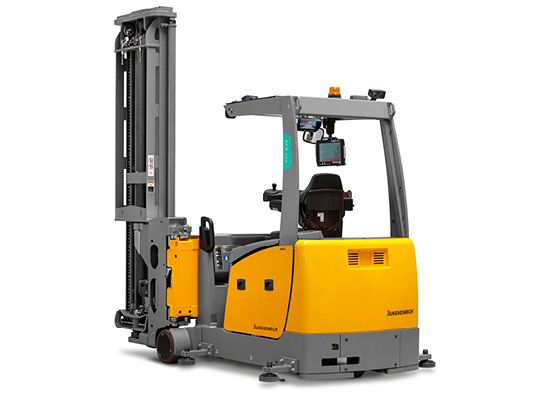

2,400 - 3,000 lb. Capacity Electric Man-Down Turret Truck

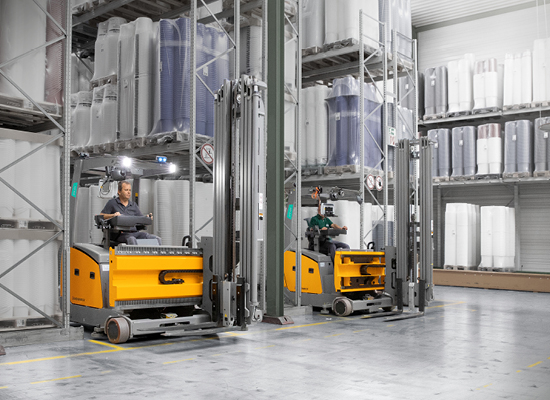

The EFX 411–414 turret trucks are designed to provide maximum versatility in very narrow aisle (VNA) warehouses.
The EFX 411-414 series of turret trucks, featuring lift heights up to 29 feet and a maximum capacity up to 3,000 lbs., are designed to provide maximum versatility in very narrow aisle (VNA) warehouses. These turret trucks, the only series of its kind offered in North America, can be used with wire or rail guidance, increasing productivity and combining applications in very narrow aisles, wide aisles and staging areas.
Productivity
The Jungheinrich® 3-phase AC motor and high-output AC controller deliver greater power and quick acceleration.
Unobstructed visibility of the forks, load and travel route helps the operator deliver/retrieve the pallet faster.
Up to two shifts on one battery charge and up to 1,000 hour service intervals means your turret trucks stay on the job longer.
Optional Warehouse Navigation System optimizes truck movement and provides automatic vertical and horizontal truck positioning.
Awareness
Electrically monitored battery locking prohibits the man-down turret truck from driving unless engaged.
Optional Personnel Protection System senses the presence of pedestrians in working aisles and alerts the operator; slows and/or stops the truck as necessary.
Energy Efficiency
Double benefit of energy regeneration – when braking and when lowering – and effective energy management.
Get up to two full shifts with one battery charge in a typical application.

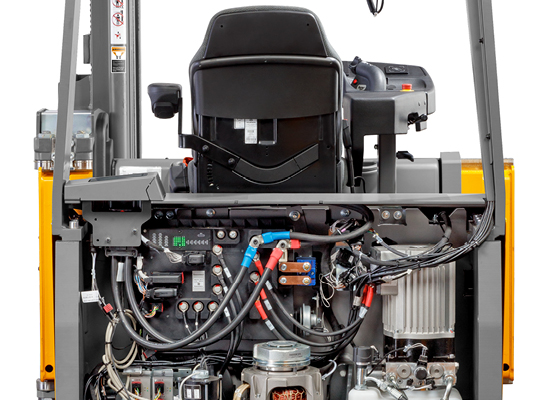

CAN-Bus communication reduces cables and plugs by 70%, increasing efficiency.
Ergonomics
Cushioned, cloth seat absorbs vibrations and is adjustable for height and weight.

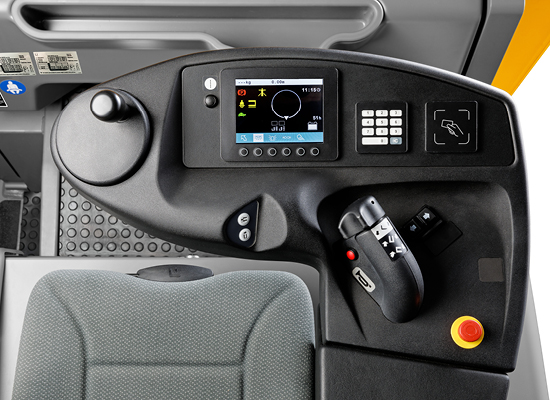

Centrally-positioned control panel includes effortless electric power steering and thumb-activated hydraulic functions.
Unobstructed visibility of the forks, load and travel route reduces operator strain.
Total Cost Of Ownership
Increase efficiency and output with the double benefit of energy regeneration and effective energy management.
Lower energy consumption and run costs due to excellent efficiency of AC technology.
AC motor is designed for greater durability and helps to lower maintenance needs and provide greater uptime.
Electronic systems utilize wear-free sensors.
Jungheinrich's service tool gives technicians the ability to easily monitor and service the forklift's vital functions, helping to maximize uptime.
Extended 1,000 hour service intervals means less maintenance and service over the lifetime of the forklift.
Exclusive 5-Year Powertrain Warranty
Expect more from Jungheinrich, the experts in warehouse products, like a 5-year / 10,000 hour powertrain warranty that outperforms others. Available on all Jungheinrich Class I and II products sold across the United States, Canada and Mexico, the coverage includes parts and labor on all forklift components. Rest easier knowing that we’re here to help keep your fleet running – shift after shift – when you need it most.
Contact Our Specialists Today
Let us help you find the right solution to optimize your warehouse productivity.
| Model | Basic Capacity (lbls) | Max Fork Height | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in) | Gross Weight (lbls) |
| EFX 411 | 2,400 | 354 | 48 | 116.4 | 61 | 89.5 | 10,604 |
| EFX 414 | 3,000 | 354 | 48 | 116.4 | 61 | 89.5 | 11,354 |
