UHD160-UHD250_UHX200_UMS160-UMS200_UND140 Class II Moving Mast Reach Truck
Back to
![]()
Back to

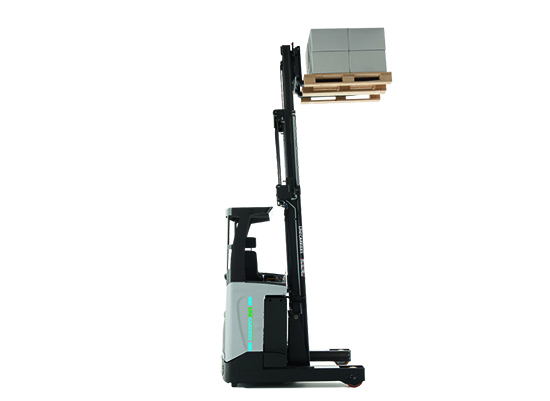

High Level Vision
The overhead guard and side pillars are painted in a non-reflective dark color and angled to provide all-round views. Additionally, the hydraulic components with TERGO®'s ProVision masts are neatly integrated into the mast design, for excellent all-round vision and productivity.

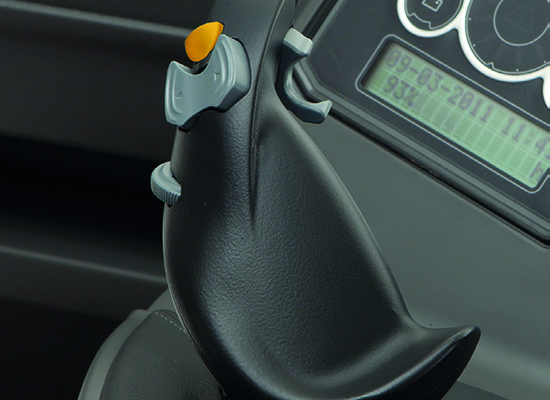

Multifunction Control
Intuitively designed for comfort and simultaneous operation, our Ergologic multifunction control allows for optimized performance while helping to minimize fatigue. Further enhancing efficiency and ergonomics, this unique multi-functional joystick activates seven different functions, including lifting, lowering, reach/retract, and tilting with one grip using the same control. Ergonomic of course, and very logical.

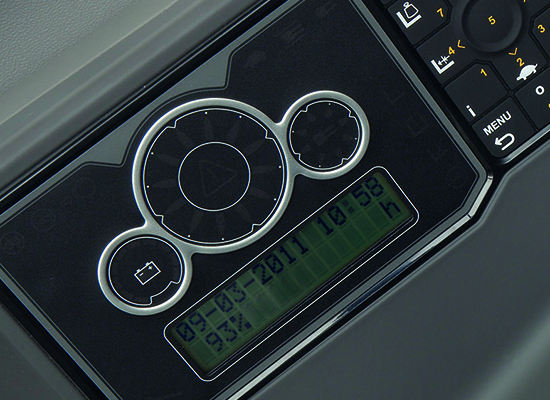

Intuitive Information
The interface instrument layout and fingertip control panel are strategically positioned and angled towards the operator to optimize overview and control. Important operator information, activated functions and safety indicators are clearly displayed. Truck status, hours, battery charge and much more are clearly displayed and easy to read.

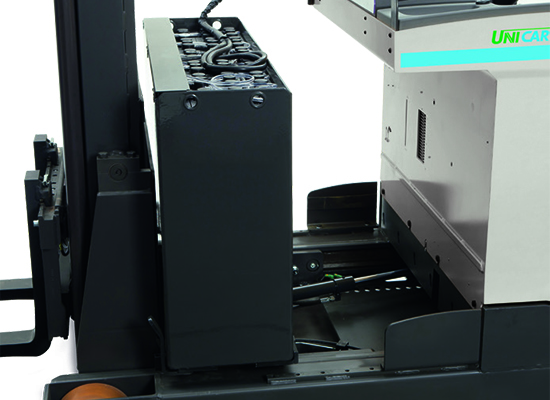

Easily Accessible Battery
The battery is easily accessible without the operator having to leave the truck, simply by connecting the battery tray to the hydraulic reach-out system.
| Model | Capacity | Height | Voltage | Length | Width | Maximum Available Fork Height | Weight |
|---|---|---|---|---|---|---|---|
| UHD160 | 1,600 | 235 mm | 48 V | 1,800 mm | 1,270-1,397 mm | 2,205 mm | 41,503,230 |
| UHD200 | 2,000 | 235 mm | 48 V | 1,910 mm | 1,270-1,397 mm | 2,205 mm | 41,503,230 |
| UHD250 | 2,500 | 235 mm | 48 V | 2,010 mm | 1,397 mm | 2,205 mm | 44,003,303 |
| UHX200 | 2,000 | 235 mm | 48 V | 1,910 mm | 1,397 mm | 2,205 mm | 52,003,920 |
| UMS160 | 1,600 | 235 mm | 48 V | 1,800 mm | 1,270 mm | 2,205 mm | 31,902,455 |
| UMS200 | 2,000 | 235 mm | 48 V | 1,910 mm | 1,270-1,397 mm | 2,205 mm | 37,402,820 |
| UND140 | 1,400 | 235 mm | 48 V | 1,725 mm | 1,120 mm | 2,205 mm | 30,102,279 |
