ECR M27-M36 End Rider Walkie Pallet Jack
Back to
![]()
Back to

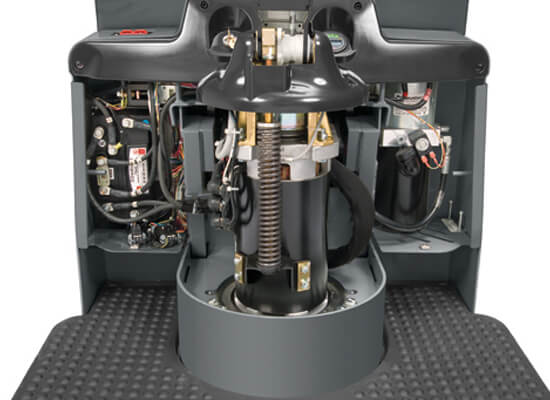

Productivity
- These end riders are equipped with 3-phase AC technology to optimize the productivity of your operations.
- Control coast increases order picking efficiencies to move more product and increase throughput.
- The jog buttons on the tiller head allow operators to advance the truck without having to continuously get on and off the operator platform, increasing picking speeds while maintaining the operator fresh throughout the shift.
- Field proven design using spiral bevel gears to help provide a smooth and quiet ride for increased throughput and comfort.
- The jog buttons on the tiller head allow operators to advance the truck without having to continuously get on and off the operator platform, increasing picking speeds while maintaining the operator fresh throughout the shift.
- Field proven design using spiral bevel gears to help provide a smooth and quiet ride for increased throughput and comfort.

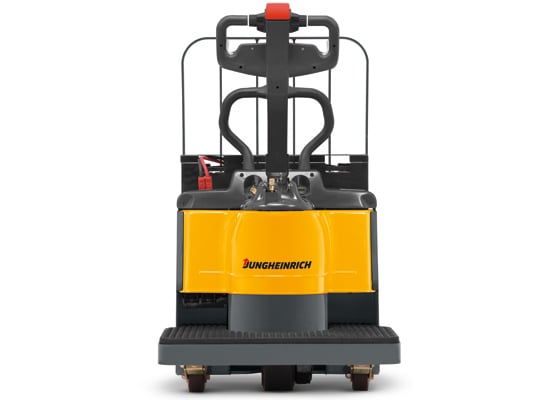

Maneuverability
- The top mounted tiller head design with a 190-degree steering arc allows for exceptional turning radius and requires minimal steering effort, which is crucial especially in tight spaces.
- A short chassis allows for easy maneuverability for operators of all skill levels, especially in confined areas of the warehouse.
- The top mounted tiller head design with a 190-degree steering arc allows for exceptional turning radius and requires minimal steering effort, which is crucial especially in tight spaces.

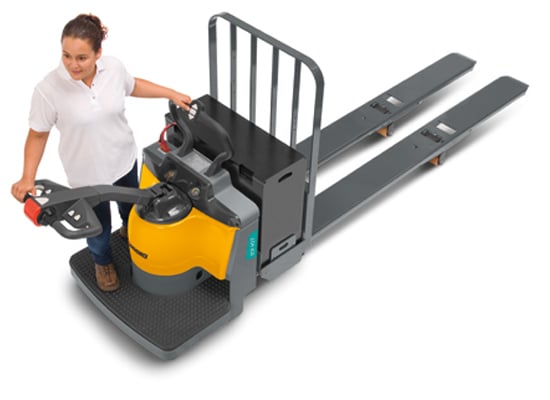

Intuitive
- Rotary thumb travel speed controls can be operated from either side for increased operator flexibility.
- Intuitive fingertip controls and soft-touch switches makes operation easy and comfortable.
- Intermediate tubular grab bar with rubber padding helps to provide a comfortable grip for increased operator comfort during operation.
- The Auto-lift feature provides a full 6 inches of ground clearance to help reduce pallet and load carry component damage. For an operator, this is one less thing to worry about.

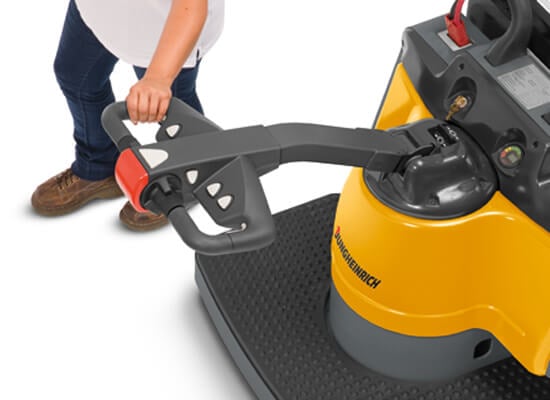

Awareness
- Excellent visibility in all directions.
- Largest operator platform in its class.
- Intuitive standard Multifunction Digital Indicator (MDI) keeps operator informed of truck status at all times with a quick glance.

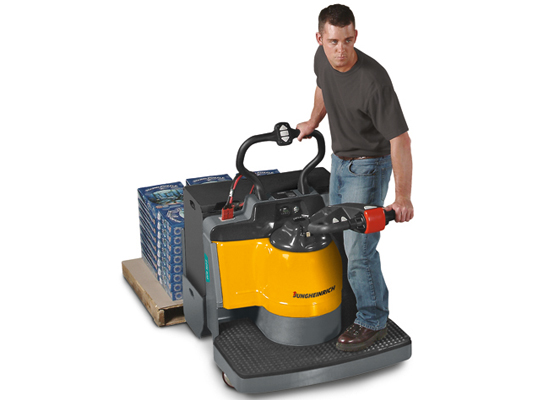

Total cost of ownership
- Brushless AC drive motors utilize fewer components, requiring less maintenance.
- Spring-loaded disc brake system eliminates the need for adjustments altogether.
- Smart electric brake provides better response, less heat build-up and longer brake life, also with no adjustments needed.
- Durable frame and scratch resistant, high-gloss finish for tough applications.
Contact our specialists today
Let us help you find the right solution to optimize your warehouse productivity.
| Model | Capacity | Height | Voltage | Length | Width | Maximum Available Fork Height | Weight |
|---|---|---|---|---|---|---|---|
| ECR M27 | 6,000 | 9.25 | 24 V | 42.7 | 35.6 | 56.8 | 1,165 |
| ECR M36 | 8,000 | 9.25 | 24 V | 42.7 | 35.6 | 56.8 | 1,165 |
