FB16CN2-FB20N2
Back to
![]()
Back to

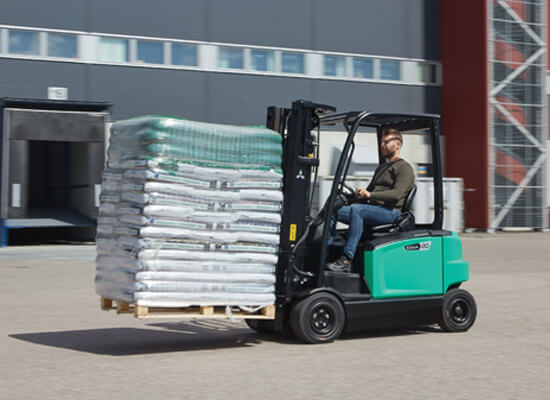

Productivity
- Smart Hydraulics: Includes load-sensing hydraulic system and passive sway control helping to keep precise control with loads.
- Curve Control: Provides supplemental control while turning corners to help keep the load and truck stable.
- Performance Modes: Includes preset ECO and PRO modes. Settings can be customized by the technician to fit their needs via TruckTool software.
- Low Energy Consumption: Designed to keep the truck running, these trucks improve productivity at a lower cost of ownership.

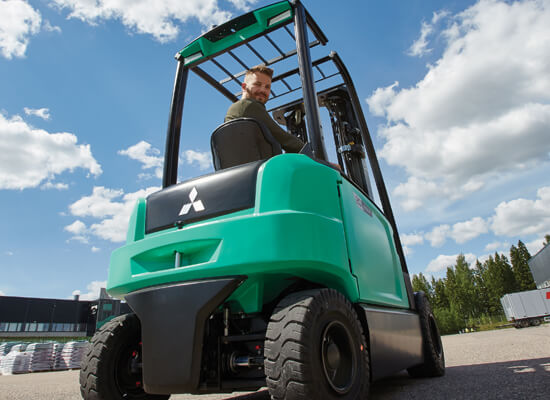

Maneuverability
- Responsive Drive System (RDS): Adapts performance rapidly in reaction to speed of pedal operation, and ensures all direction changes, starts and stops are smooth.
- Automatic Steering: Returns the steering wheel back to the 8 o’clock position whenever the truck straightens up.
- +100 degree turning rear axle and dual drive steering provides smooth and agile maneuvering including instant side turns with no need to push back.
- Excellent stability on uneven ground
Awareness
- Control Panel: Multifunctional, informative, full-color display screens are weather protected which provides detailed information about the truck features that can be for training purposes.
- Excellent Visibility: The slender dashboard, free lift cylinders, clean mast design, one spoke steering wheel open concept, OHG design and open side views help drivers to be away of any other units or pedestrians.

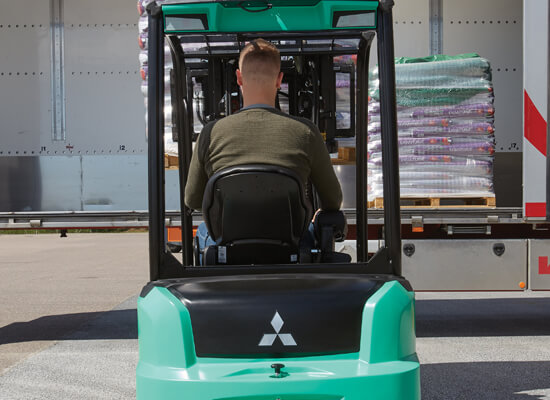

Reliability
- Electromagnetic Parking Brake: With no traditional brake pedals or release levers are needed. Just press the accelerator pedal and you are good to go.
- Ramp Hold: Provides supplementary control of the truck. Simply releasing the accelerator pedal causes the parking brake to immediately activate after the truck stops.
- Solid pneumatic tires
- TruckTool setup and diagnostics
| Model | Capacity | Height | Voltage | Length | Width | Maximum Available Fork Height | Weight |
|---|---|---|---|---|---|---|---|
| FB16CN2 | 3,000 | 275.5 in | 48 V | 78.8 in | 42.9 in | 80.7 in | 6,490 |
| FB16N2 | 3,000 | 275.5 in | 48 V | 83.1 in | 42.9 in | 80.7 in | 6,519 |
| FB18CN2 | 3,500 | 275.5 in | 48 V | 78.8 in | 42.9 in | 80.7 in | 6,865 |
| FB18N2 | 3,500 | 275.5 in | 48 V | 83.1 in | 42.9 in | 80.7 in | 6,827 |
| FB20N2 | 4,000 | 275.5 in | 48 V | 83.6 in | 44.8 in | 80.7 in | 7,246 |
