Side view of Mitsubishi light-duty walkie stacker

2,200 LB. CAPACITY LIGHT-DUTY ELECTRIC WALKIE STACKERS

The PWF11 and PWT11 light-duty walkie pallet stacker provides added control along with a crawl speed function that allows the operator to pinwheel in tight spaces.

These 2,200 lb. capacity walkie stackers offers precise control when traveling at any speed. The AC-powered drive motor is brush-less, and the 3-phase AC controller allows for easy programming for various applications.

Productivity

Highly Efficient – Equipped with an advanced 3-phase AC drive motor.

High Lifting Speed – Lifting speed of 17.7 fpm provides increased increases productivity.

Easy To Maneuver – Compact light-duty stacker is easy to maneuver in tight spaces.

Precise Lifting And Lowering – Makes the walkie stackers ideal for moving fragile loads onto racking or the floor.

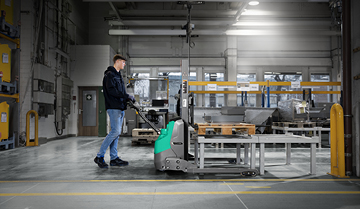

PWF11 walkie lifting metal containers

Awareness

Greater Stability – Features an offset drive unit for higher four-point wheel stability.

Emergency Shut Off

– Large, red emergency cut-off switch enables quick, intuitive shut down of the walkie pallet stacker in case of emergency.


Excellent Visibility – Features a unique, single cylinder mast design for a superior view of the load and surrounding area.

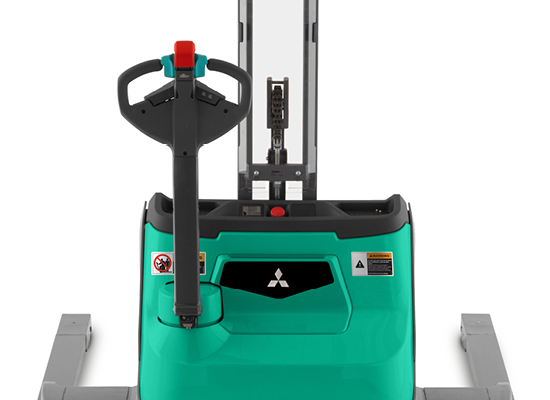

Left side view of Mitsubishi PWF11

Energy Efficiency

Long Run Times – The lift truck battery, when combined with energy efficient 3-phase AC technology, provides long operating times.

Maintenance-Free Batteries – Includes 2 x 12V / 70 Ah maintenance-free batteries.

Integrated Charger – 115V integrated charger and cord allows for fast, simple charging at any 110 / 120V wall outlet.

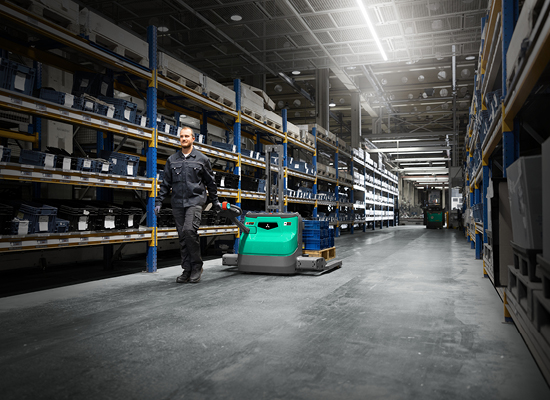

Two Mitsubishi PWF11s

Ergonomics

Designed For Comfort – Our electric stackers feature an ergonomic, multi-function tiller head for greater comfort and control. The redeveloped state-of-the-art tiller head is superbly engineered to suit the ergonomic needs of the walkie stacker forklift operator.

Crawl Speed Button – Providing added control, the crawl speed function allows the operator to pinwheel in tight spaces. The handle can also be used in the fully upright position for increased productivity when turning in tight spaces.

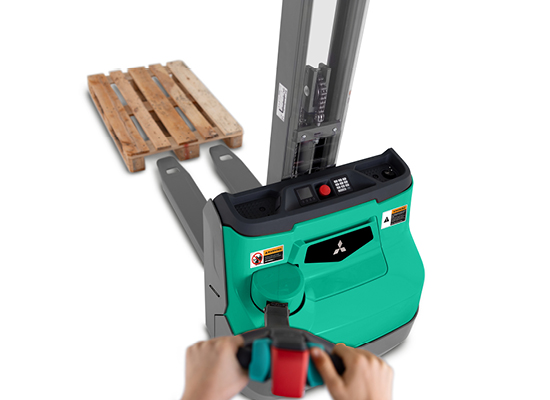

PWF11 stacker operating handle

Total Cost Of Ownership

Low Maintenance Design – 3-phase AC brushless drive motor is easy to maintain.

Added Protection – The integrated charger is sealed within the IP54-protected controller, and the handle head and electrical connectors are protected to IP65 for greater durability.

Easy To Service – All stacker forklift components are easy to reach through the durable front cover.

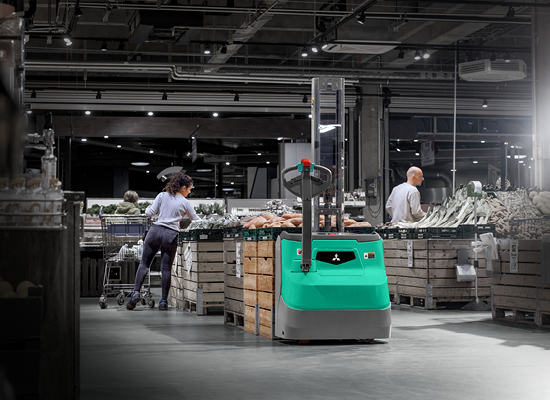

Loading duct tape onto Mitsubishi PWF11

Model Basic Capacity (lbls) Max Fork Height Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in) Gross Weight (lbls)
PWF11 2,200 64/82 24 20.5 31.5 76/96 1,202/1,235
PWT11 2,200 64/82 24 20.5 31.5 78/96 1,301/1,334

Product Brochure - English

PWF11/PWT11 Light-Duty Walkie Stackers

Product Brochure - Spanish

PWF11/PWT11 Light-Duty Walkie Stackers
