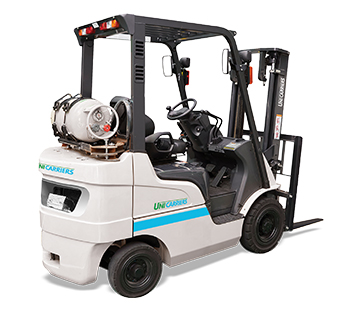

PFG15PT-PFD35PT Class V IC Pneumatic Tire Forklift
Back to
Back to
Excellent Uptime
Easy Access
- Service access of this truck is easily accessible without tools. This includes a rear hinged engine cover, removable floor plate, radiator cover, and steel side covers.
Oil Maintenance Intervals
- Improved 800-hour engine oil maintenance intervals which means less money spent on maintenance and less downtime for the truck.
Engine Protection System
- Display-based indicators immediately notify the operator when vital fluids are low or engine maintenance is required, resulting in greater uptime while helping to prevent more costly maintenance.

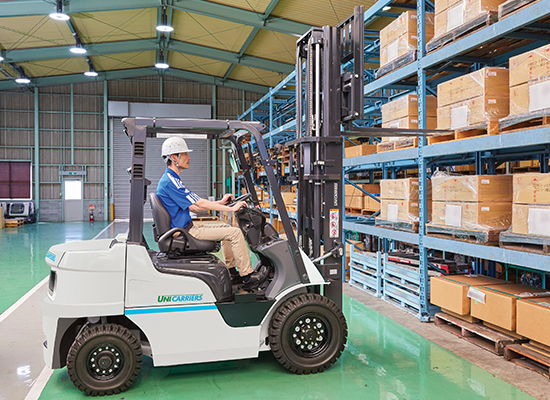

First Class Comfort
Reduced Vibration
- Features such as rubber mounted components and closed wheel wells that reduce noise and vibration transfer to the steel frame, keeping your operator comfortable through their shift.
New Premium Color Display
- Designed to increase operator comfort while using.
Rear Grab Horn Button
- Easily accessible and allows operator to sound horn without removing hand from rear grab bar. This adds to operator comfort when operating the truck in reverse.

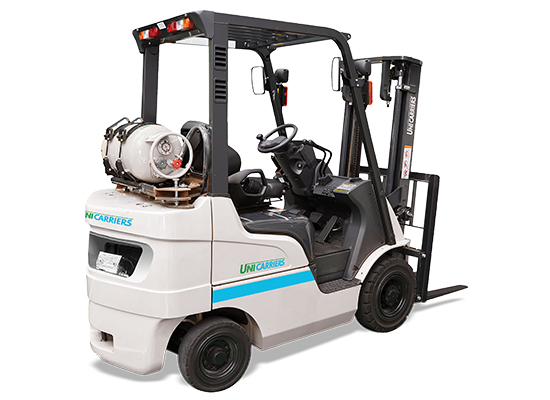

Power & Performance
Elevated Air Intake
- Reduces the risk of debris entering the engine system that is brushed off the ground through normal operation.
Durable Mast
- Strength features deeper webs, six load rollers, and specifically shaped channels for reliability.
Hydrostatic Steering System
- Creates less steering wheel effort by operator which means better operator control and maneuverability of the truck.
Inching Function
- Two pedal brake system for inching function allows for slow, controlled acceleration when working on a grade or in tight areas that require added maneuverability.
Brake Assembly
- Dual action parking brake helps to minimize the chance or unintended release of the parking brake.
| Model | Capacity | Height | Voltage | Length | Width | Maximum Available Fork Height | Weight |
|---|---|---|---|---|---|---|---|
| PFD15PT | 1,500 | Diesel | 2,260 | 1,065-1,480 | 2,065 | 2,530 | |
| PFD18PT | 1,750 | Diesel | 2,300 | 1,065-1,480 | 2,065 | 2,720 | |
| PFD20CPT | 2,000 | Diesel | 2,355 | 1,065-1,480 | 2,065 | 3,030 | |
| PFD20PT | 2,000 | Diesel | 2,485 | 1,065-1,480 | 2,074 | 3,380 | |
| PFD25PT | 2,500 | Diesel | 2,560 | 1,150-1,640 | 2,074 | 3,680 | |
| PFD30PT | 3,000 | Diesel | 2,735 | 1,150-1,640 | 2,093 | 4,350 | |
| PFD35PT | 3,500 | Diesel | 2,795 | 1,275-1,710 | 2,103 | 4,740 | |
| PFG15PT | 3,000 | LP Gas | 2,260 | 1,065- | 2,065 | 2,490 | |
| PFG18PT | 3,500 | Gas/LPG | 2,260 | 1,065- | 2,065 | 2,690 | |
| PFG20CPT | 4,000 | Gas/LPG | 2,300 | 1,065- | 2,065 | 3,010 | |
| PFG20PT | 4,000 | Gas/LPG | 2,355 | 1,150-1,640 | 2,074 | 3,300 | |
| PFG20PTH | 5,000 | Gas/LPG | 2,485 | 1,150-1,640 | 2,074 | 3,300 | |
| PFG25PT | 5,000 | Gas/LPG | 2,560 | 1,150-1,640 | 2,074 | 3,600 | |
| PFG25PTH | 5,500 | Gas/LPG | 2,560 | 1,150-1,640 | 2,074 | 3,600 | |
| PFG30PT | 6,000 | Gas/LPG | 2,735 | 1,275-1,710 | 2,093 | 4,240 | |
| PFG35PT | 7,000 | Gas/LPG | 2,795 | 1,290-1,710 | 2,103 | 4,630 |
