2,600 - 4,400 lb. Capacity Electric Fork-Over & Straddle Stand-On & Pedestrian Stackers
The efficient and versatile EJC and EJC b electric pedestrian stackers offer a high level of efficiency provided by excellent energy management.
The Jungheinrich walkie straddle and fork-over stackers are specifically designed for medium- to heavy-duty multi-level stacking applications. With solid steel baselegs and a strong, 0.3 inch thick chassis, these 2,600-4,400 lb. capacity forklifts can accommodate a wide variety of pallet and load sizes with durability and strength. The stackers travel up to 3.6 mph even with a full load while the 3 kW hydraulic motor effortlessly lifts rated loads to their full lift heights.
Productivity

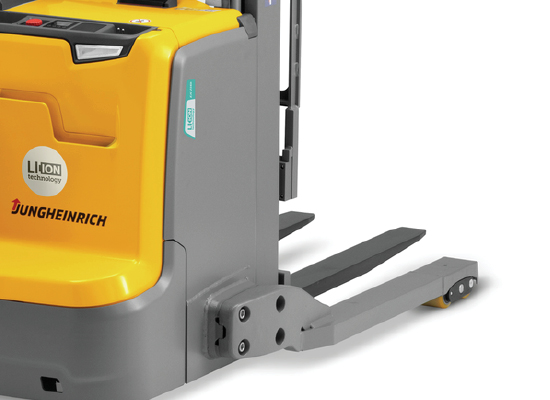

Powerful, low-maintenance AC drive motor
Proportional hydraulic controls allow for precision placement of fragile loads
Lift heights over 19 feet make it ideal for stacking and retrieval
Awareness

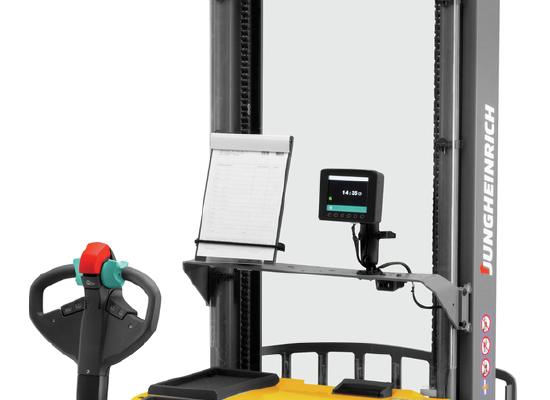

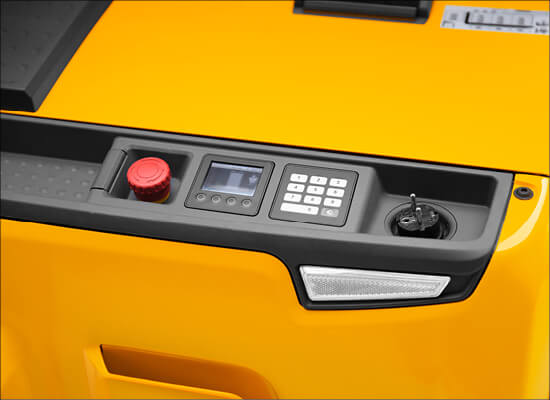

Optional 2-inch display functions as a central display and setting instrument to keep operator aware of truck status at all times
Large, red emergency cut-off switch enables quick, intuitive shut down of forklift in case of emergency
Energy Efficiency
The lift truck battery combined with the energy-efficient 3-phase AC technology provides long operating time
Ergonomics
The electric tiller steering is precise and allows for easy control and fatigue-free operation
Lift and lower controls combined on a rocker switch for convenient operation in virtually any handle position
Total Cost Of Ownership
Low maintenance 3-phase AC drive motor
Easy access to all forklift components through a durable front cover
Contact Our Specialists Today
Let us help you find the right solution to optimize your warehouse productivity.
| Model | Basic Capacity (lbls) | Max Fork Height | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in) | Gross Weight (lbls) |
| EJC 212b | 2,600 | 114.2 | 24 | 45.2 | 43.3 | 136.6 | 2,348 |
| EJC 214b | 3,000 | 114.2 | 24 | 45.2 | 43.3 | 136.6 | 2,526 |
| EJC 216b | 3,500 | 110.2 | 24 | 45.2 | 43.3 | 132.7 | 2,526 |
| EJC 220b | 4,400 | 110.2 | 24 | 45.2 | 43.3 | 136.4 | 2,601 |
| EJC 212 | 2,600 | 114.2 | 24 | 45.2 | 31.5 | 132.9 | 1,940 |
| EJC 214 | 3,000 | 110.2 | 24 | 45.2 | 31.5 | 132.9 | 2,291 |
| EJC 216 | 3,500 | 110.2 | 24 | 45.2 | 31.5 | 130.9 | 2,302 |
| EJC 220 | 4,400 | 110.2 | 24 | 45.2 | 31.5 | 136.4 | 2,661 |
