WR27M-36M End Rider
AC Technology - Provides higher torque, smooth directional changes and longer run times for sustainable productivity.
Excellent Travel Speeds - Allow for greater throughput, especially in applications with long distance shuttle runs.

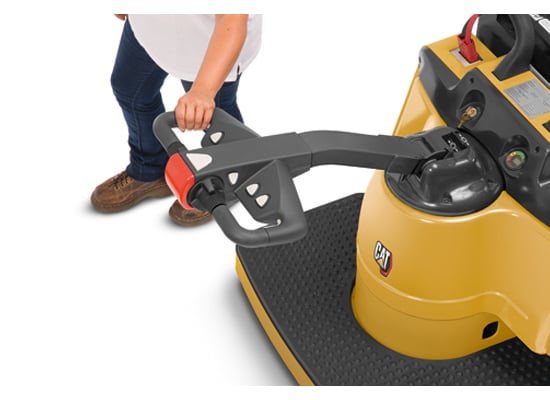

Increasing Picking Speeds - The jog buttons on the tiller head allow operators to advance the truck without having to continuously get on and off the operator platform, increasing picking speeds while maintaining the operator fresh throughout the shift.
Heavy-Duty Lift System - Combined with a quiet, spiral beveled gear drive, this system provides solid and reliable performance for increased productivity.

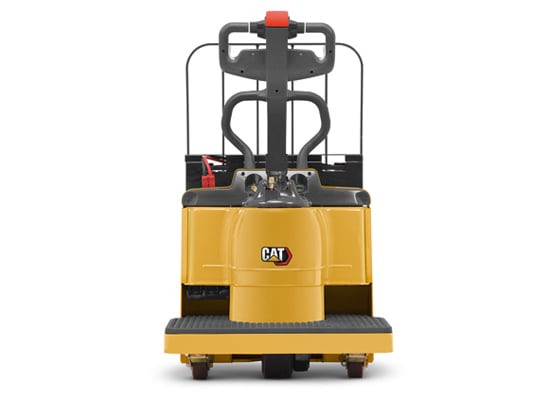

Short Chassis - Allows for easy maneuverability for operators of all skill levels, especially in confined areas of a warehouse, especially in more restrictive or confined spaces, with the 190-degree steering arc capabilities.
190-Degree Steering Arc – Allows for excellent turning radius and requires very little steering effort, which is very important when operating in confined spaces.

Infinitely Variable Speeds - Infinitely variable travel speeds and easy lifting and lowering commands allow for greater control.

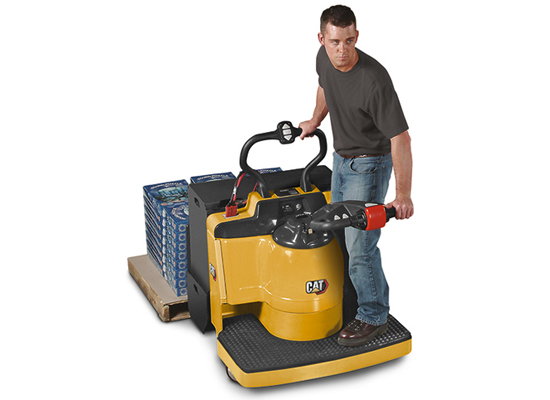

Buttons and Switches - Soft touch, easy to reach buttons and smooth, virtually effortless fingertip directional switches make operation easy and comfortable.
Flexibility - Controls can be operated from either side for increased operator flexibility.
Auto-Lift Feature - Provides a full 6 inches of ground clearance to help reduce pallet and load carry component damage. For an operator, this is one less thing to have to think about.

Visibility – Excellent visibility in all directions.

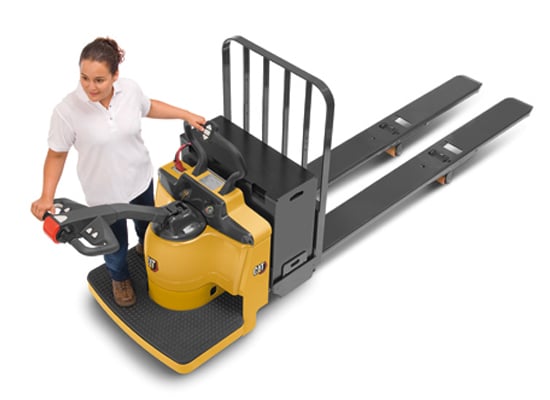

Largest Operator Platform In Its Class – Allows operators to comfortably do their jobs effectively and efficiently.
Optional Multi-Functional LCD Display - Provides even greater operator awareness and customized performance settings.
Optional Accessory Pole - Available for installation of LED work lights or Amber strobe lights for increased operator and pedestrian awareness.

Longer Component Life - Brushless AC drive motors and “Smart” electric brake both have fewer moving parts and no adjustments needed to be made.
Thermal Protection - This feature may slow or shut down the system in case of high temperatures.
IP65 Rated Sealed Controller – Offers a layer of protection that allows these trucks to operate in wet rooms, coolers and freezers with temperatures down to -20°F (-28.9°C).

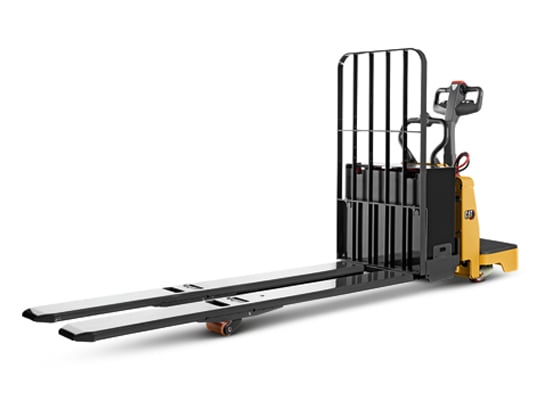

Durable Fork Design – 9.25-inch-wide push-type fork assembly made with full-length angle iron reinforcement increases tensional strength and rigidity while resisting twisting and flexing.

Model | Capacity | Height | Voltage | Length | Width | Maximum Available Fork Height | Weight |
---|---|---|---|---|---|---|---|
WR27M | 6,000 | 9.25 | 24 V | 42.7 | 35.6 | 56.8 | 1,165 |
WR36M | 8,000 | 9.25 | 24 V | 42.7 | 35.6 | 56.8 | 1,165 |
