Product selection image of Mitsubishi heavy-duty walkie stacker

3,000 - 3,500 lb. Capacity Electric Heavy-Duty Walkie Straddle Stackers

The PWT13-PWT18 straddle stackers offer precise control when traveling at any speed and when retrieving or putting away loads.

With full lift and lower control, the 2,600-3,500 lb. capacity walkie straddle stackers allow the operator to be more precise in retrieving or putting away loads in the rack – resulting in less damage to product and the surroundings.

Productivity

Highly Efficient – Equipped with an advanced 3-phase AC drive motor.

High Lifting Speed – Lifting speed of 17.7 fpm provides increased increases productivity.

Easy To Maneuver – Compact electric stacker is easy to maneuver in tight spaces.

Precise Lifting And Lowering – Makes the walkie stackers ideal for moving fragile loads onto racking or the floor.

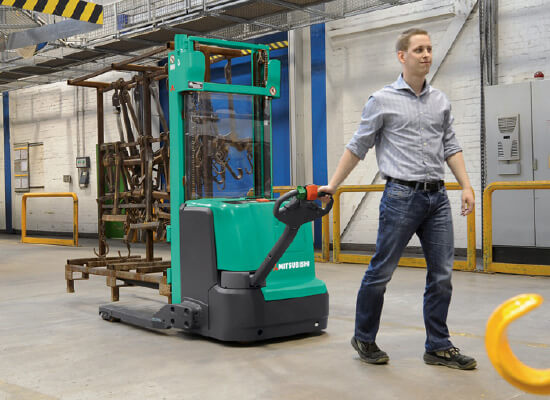

Man pulling PWT13 by handle

Awareness

Greater Stability – Features an offset drive unit for higher four-point wheel stability.

Emergency Shut Off – Large, red emergency cut-off switch enables quick, intuitive shut down of the electric walkie stacker in case of emergency.

Excellent Visibility – Features a unique, single cylinder mast design for a superior view of the load and surrounding area.

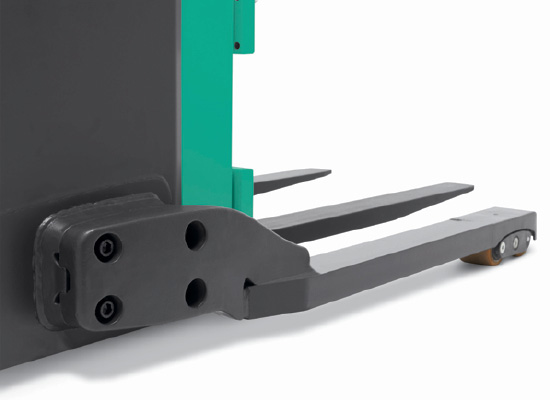

Forks of Mitsubishi PWT13 straddle stacker

Energy Efficiency

Longer Run Times – Designed with energy efficient three-phase AC technology, the straddle stacker provides long operating times for greater productivity.

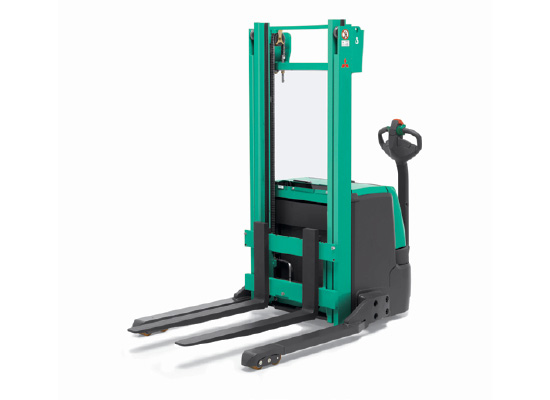

Front left view of Mitsubishi PWT13

Ergonomics

Designed For Comfort – Our electric walkie stackers feature an ergonomic, multi-function handle head for greater comfort and control. The redeveloped, state-of-the-art handle head is superbly engineered to suit the ergonomic needs of the forklift operator.

Crawl Speed Button – Providing added control, the crawl speed function allows the operator to pinwheel in tight spaces. The handle can also be used in the fully upright position for increased productivity when turning in tight spaces.

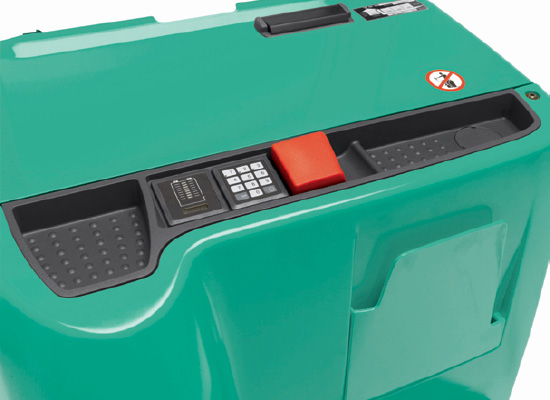

Mitsubishi PWT13 operating panel

Total Cost Of Ownership

Low Maintenance Design – 3-phase AC brushless drive motor is easy to maintain.

Added Protection – The integrated charger is sealed within the IP54-protected controller, and the handle head and electrical connectors are protected to IP65 for greater durability.

Easy To Service – All forklift components are easy to reach through the durable front cover.

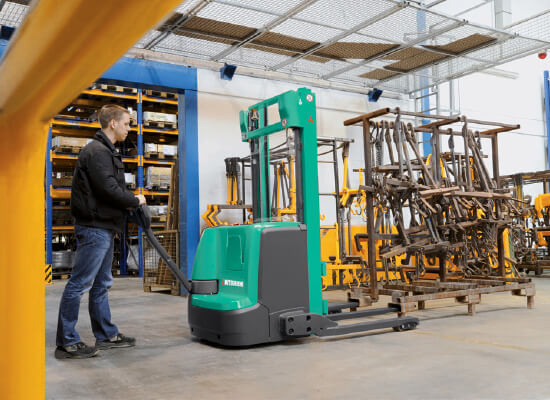

Man pushing Mitsubishi PWT13 with handle

Lithium-ion Battery Solutions

Lower Lifetime Cost
Lithium-ion batteries feature a lower cost of ownership than lead-acid batteries by eliminating excessive maintenance costs

Increase Productivity
Lithium-ion batteries can be charged to full capacity in a fraction of the time it takes to charge a lead-acid battery. Opportunity charging that can be interrupted at any time, prevents downtimes and ensures 24/7 truck usage.

Increase efficiency
The battery, vehicle and charger are all synchronized which allows for fast and efficient energy usage and charging capability.

Lithium-Ion Battery Solution

Model Basic Capacity (lbls) Max Fork Height Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in) Gross Weight (lbls)
PWT15 3,000 117 24 35.8 31.5 77 2,527
PWT18 3,500 113 24 35.8 31.5 77 2,527

Product Brochure - English

PWT15-PWT18 Heavy-Duty Walkie Stackers

Product Brochure - Spanish

PWT15-PWT18 Heavy-Duty Walkie Stackers
