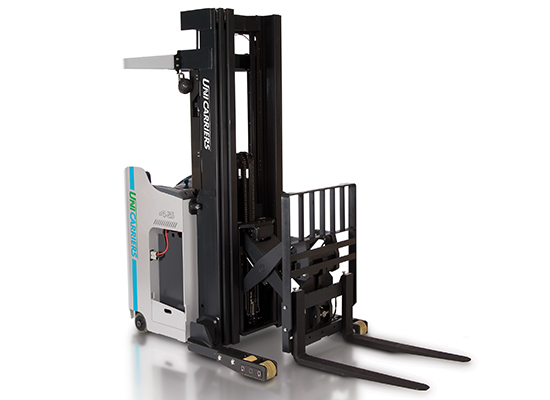

SRX Series SRX35N-SRX30ND Class II Reach Truck
Back to
![]()
Back to
Simple efficiency

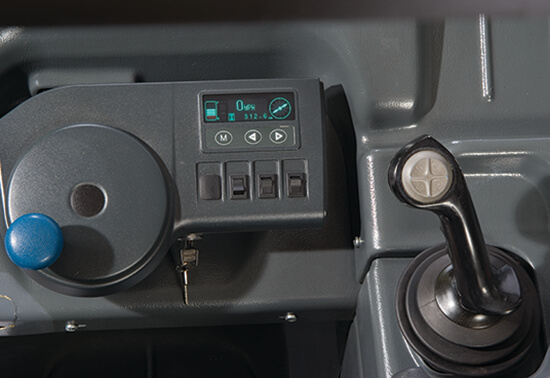

The use of Hall Effect sensors and magnetic reed switches in the control handle — as well as encoders used in the motors and steering tiller — mean no heating components are needed for cold or freezer operations. This design also minimizes the effect of debris on the truck's operation, resulting in more uptime and greater productivity.
Get back up again quickly

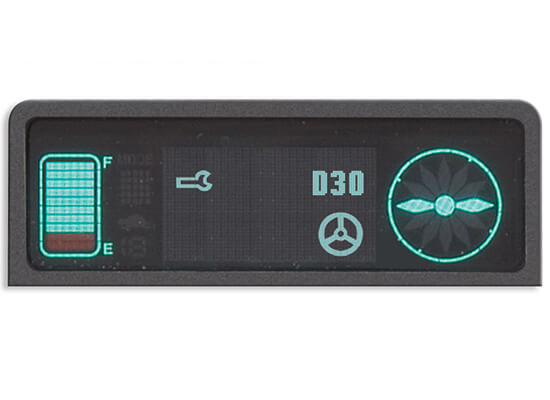

Our sophisticated CAN-Bus Network continuously monitors the truck’s key operating systems, providing smooth operation and continuous diagnostics of all truck components. The LED meter panel is the portal to your truck’s performance, providing ready access to system status, fault codes, service history, and driver alerts to minimize maintenance and downtime. Unlike competitive electric double reach forklift models, no tablet, laptop, or handset tool is needed to access this information.

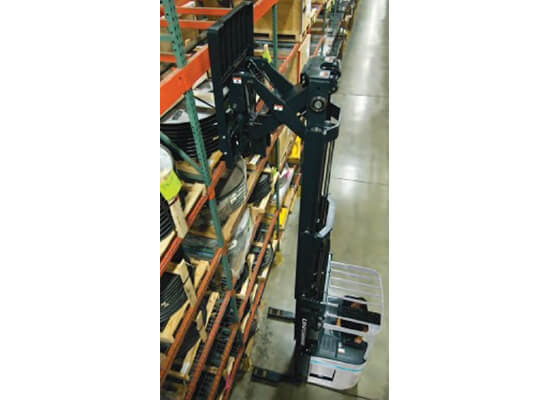

Our high-visibility, rigid mast gives you more flexibility
Achieve greater productivity with the SRX Series’ high-visibility mast. Its rugged construction features two interlocking I beam rails nested within a rigid outer channel and includes six heavy-duty rollers from carriage to mast rail.
Superior performance up and down your aisles
Specifically designed for the SRX, the AC motors are matched with a controller that’s tuned to their precise torque and power curves. The result is quick acceleration, higher productivity, low energy consumption, and fast-operating speeds.
| Model | Capacity | Height | Voltage | Length | Width | Maximum Available Fork Height | Weight |
|---|---|---|---|---|---|---|---|
| SRX30ND | 3,000 | 210 | 36 V | 61.9 | 43 | 93.5 | 6,715 |
| SRX35N | |||||||
| SRX45N | 4,500 | 210 | 36 V | 55.0 | 43 | 93.5 | 6,420 |
| SRX45LN |
