NPV20-25N3/NPF20-25N3 (R)(S) Brochure - English
Back to
![]()
Back to
Productivity
- Increase Productivity - These trucks are programmable to suit operators of all skill levels, helping to optimize your operations.
- Work in Tight Spaces - Compact chassis and easy steering provides excellent maneuverability that make it easy for operators to get around the warehouse quickly and efficiently.
- Unique Floating Drive Unit Design - Works with additional friction force from the hydraulic system to maximize drive wheel pressure and traction, so wheelspin on slippery floors is prevented and braking performance is optimized.

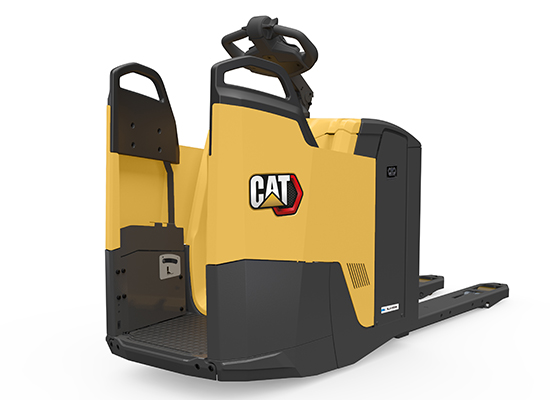

Ergonomics
- Large, Spacious Operator Platforms - Provide hours of comfortable operation, whether on a fold-down platform or a fixed platform.
- Comfortable Operation - With many different types of steering designs such as tiller-type power steering, comfort steering via a tiller head without arm, mechanical steering and electronic steering technology, operators are sure to be provided with a sustainable design for comfort shift after shift.
- Keeping Operators Fresh - Ergonomically designed, easy to reach controls make this truck comfortable to operate and also help to provide increased throughput.

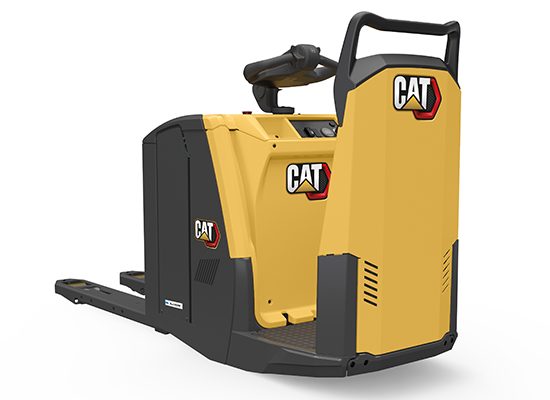

Operational Flexibility
- Versatile Design – Use the NPV20N3-NPV25N3 either as a pedestrian style pallet truck or flip the operator platform down to switch to ride-on mode for longer shuttle runs.
- Rear Entry Fixed Platform – The NPF20-NPF25N3R has a fixed platform with rear entry, which is ideal for loading and unloading operations.
- Side Entry Fixed Platform - The NPF20-NPF25N3S makes it ideal for low-level order picking and other internal applications requiring operators to quickly enter and exit the truck.

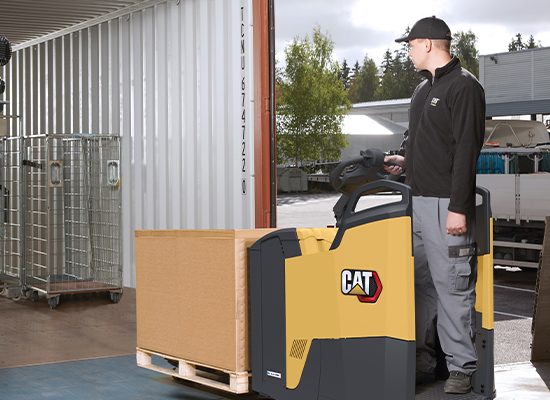

Intuitive
- Cornering Control - Automatically slows truck down when turning in order to maintain smooth travel. With the caster wheel design, even on rough surfaces, shocks and vibrations are minimized. These trucks feature a locking function that maintains load stability during turns to further increase operator confidence.
- Electronic Steering Technology - Automatically adjusts sensitivity according to steered angle and truck speed, and gives resistance and feedback, for controlled travel.
- Control Switches - Proportional lift and lower control via rocker switches enables quick, smooth and accurate load control for an intuitive feel and operation.

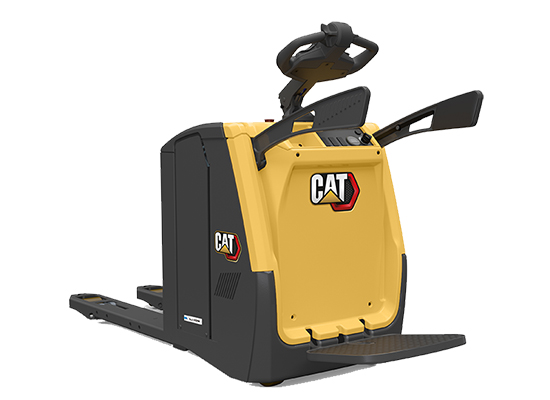

Total Cost Of Ownership
- Shorter Maintenance Time - Sealed connectors and sensors, quick and easy access to major components and clear truck status communication from the display help to keep your products moving longer.
- Fully Weather Protected and Impact-Resistant Tiller Heads - sealed to IP65 standards and reinforced for high durability.
- Durable Design - Constructed with high quality components, these trucks are built to keep your products moving by providing greater run times while minimizing down time.
| Model | Capacity | Height | Voltage | Length | Width | Maximum Available Fork Height | Weight |
|---|---|---|---|---|---|---|---|
| NPF20N3R-NPF25N3R | 2,500 | 135 | 24 V | 2,292 | 740 | 1,428 | 820 |
| NPF20N3S-NPF25N3S | 2,500 | 135 | 24 V | 1,141 | 740 | 1,297 | 800 |
| NPV20N3-NPV25N3 | 2,500 | 135 | 24 V | 1,106 | 740 | 1,512 | 750 |
